Planar Simplicity M Serie

43" - 86" 4K LCD Displays

Angebot anfordern

  1. Leyard (de)
  2. Produkte
  3. Großformatige LCD Displays
  4. Planar Simplicity M Serie

Wirtschaftliche Digital Signage-Lösung mit USB-Wiedergabe, Ein-/Aus-Schaltuhr und optionalem Touchscreen

Die 4K-LCD-Displays der Planar Simplicity M Serie ermöglichen die einfache Übertragung und Wiedergabe von hochauflösenden Digital Signage-Medien. Ausgewählte Displays sind gegen Cyber-Sicherheitsbedrohungen geschützt und ENERGY STAR®-zertifiziert. Multi-Touch-Modelle sind ebenfalls erhältlich.

Die Displays der Simplicity M Serie zeichnen sich durch ein schlankes Design und eine Funktionalität aus, die sich in gewerblichen Umgebungen mit regelmäßigen Öffnungszeiten wie Einzelhandelsgeschäften, Restaurants, Arztpraxen und Besprechungsräumen von Unternehmen bewährt hat.

  • Verfügbare Größen: 43", 50", 55", 65", 75", 86"
  • USB-Medienwiedergabe
  • ENERGY STAR®-zertifizierte Modelle
  • Touch-Modelle verfügbar

Highlights

Zeitsteuerung

Simplicity M Displays bieten die Möglichkeit, automatische Ein- und Ausschaltvorgänge und Medienwiedergabezeiten zu programmieren, so dass die Inhalte dann abgespielt werden, wenn sie benötigt werden, und die Displays Energie sparen, wenn dies nicht der Fall ist.

Energieeffizient

Unsere Simplicity M Displays tragen das ENERGY STAR®-Label der US-Behörden, das sie als Lösungen auszeichnet, die Betriebskosten und Strom sparen.

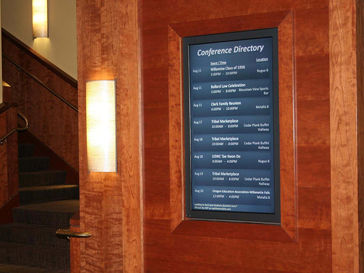

Quer- oder Hochformat

Die Displays dieser Serie können sowohl im Hoch- als auch im Querformat montiert werden, was ein breiteres Spektrum an Einsatzmöglichkeiten und Anwendungen eröffnet und mehr Kreativität bei der Entwicklung von Inhalten ermöglicht.

Add-Ons & Zubehör

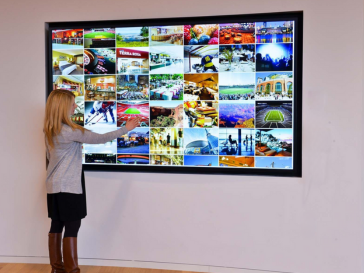

Interaktion

Nutzen Sie die Displays für Interaktivität mit einem Multi-Touch-System, das sich ideal für die Zusammenarbeit, Präsentationen und Lernumgebungen eignet, in denen Whiteboards, Anmerkungen und eine bessere allgemeine Beteiligung erforderlich sind.

Halterungen & Zubehör

Eine Vielzahl von anpassbarem und einfach zu bedienendem Zubehör ist für fast jede Anwendung erhältlich, egal ob Sie eine Wandhalterung, eine Deckenhalterung oder einen Tischständer benötigen.

Spezifikationen

SLM432 SLM432-T SLM502 SLM502-T SLM552 SLM552-T SLM652 SLM652-T SLM752 SLM752-T SLM862 SLM862-T
Haze 25% - 25% - 25% - 25% - 25% - 22% -
Surface Treatment AG - AG - AG - AG - AG - AG -
Helligkeit, typ. (cd/m²) 500 nits 400 nits 500 nits 400 nits 500 nits 400 nits 500 nits 400 nits 500 nits 400 nits 500 nits 400 nits
Pixel Pitch (mm) 0.245mm x 0.245mm 0.245mm x 0.245mm 0.285mm x 0.285mm 0.285mm x 0.285mm 0.315mm x 0.315mm 0.315mm x 0.315mm 0.372mm x 0.372mm 0.372mm x 0.372mm 0.430mm x 0.430mm 0.430mm x 0.430mm 0.494mm x 0.494mm 0.494mm x 0.494mm
Cabinet Maße (BxHxT) 961.0mm x 553.2mm x 59.8mm (37.8" x 21.8" x 2.4") 984.0mm x 572.2mm x 62.8mm (38.7" x 22.5" x 2.5") 1121.6mm x 646.0mm x 59.8mm (44.2" x 25.4" x 2.4") 1147.4mm x 668.0mm x 62.8mm (45.2" x 26.3" x 2.5") 1235.4mm x 706.2mm x 59.8mm (48.6" x 27.8" x 2.4") 1254.4mm x 725.2mm x 62.8mm (49.4" x 28.6" x 2.5") 1454.3mm x 829.3mm x 59.8mm (57.3" x 32.6" x 2.4") 1473.3mm x 843.0mm x 62.8mm (58.0" x 33.2" x 2.5") 1683.5mm x 961.7mm x 69.5mm (66.3" x 37.9" x 2.7") 1706.2mm x 984.5mm x 72.4mm (67.2" x 38.8" x 2.9") 1929.1mm x 1100.0mm x 69.5mm (75.9" x 43.3" x 2.7") 1951.8mm x 1122.5mm x 72.4mm (76.8" x 44.2" x 2.9")
Cabinet Size (WxHxD) with Handles Not Applicable Not Applicable Not Applicable Not Applicable Not Applicable Not Applicable Not Applicable Not Applicable 1683.5mm x 961.7mm x 95.3mm (66.3" x 37.9" x 3.8") 1706.2mm x 984.5mm x 98.2mm (67.2" x 38.8" x 3.9") 1929.1mm x 1100.0mm x 95.3mm (75.9" x 43.3" x 3.8") 1951.8mm x 1122.5mm x 98.2mm (76.8" x 44.2" x 3.9")
Display Weight (kg) Shipping 11.9 kg (26.2 lbs) 15.8 kg (34.8 lbs) 17.2 kg (37.9 lbs) 21.7 kg (47.8 lbs) 19.1 kg (42.1 lbs) 28.5 kg (62.8 lbs) 28.6 kg (63.1 lbs) 37.2 kg (82.0 lbs) 47.5 kg (104.7 lbs) 56.3 kg (124.1 lbs) 63.2 kg (139.4 lbs) 75.9 kg (176.1 lbs)
Betriebstemperatur (°C) 0° to +40°C (32° to 104°F) up to 3000m 0° to +40°C (32° to 104°F) up to 3000m 0° to +40°C (32° to 104°F) up to 3000m 0° to +40°C (32° to 104°F) up to 3000m 0° to +40°C (32° to 104°F) up to 3000m 0° to +40°C (32° to 104°F) up to 3000m 0° to +40°C (32° to 104°F) up to 3000m 0° to +40°C (32° to 104°F) up to 3000m 0° to +40°C (32° to 104°F) up to 3000m 0° to +40°C (32° to 104°F) up to 3000m 0° to +40°C (32° to 104°F) up to 3000m 0° to +40°C (32° to 104°F) up to 3000m
Feuchtigkeit im Betrieb (RH) 20 - 85% RH (non-condensing) 20 - 85% RH (non-condensing) 20 - 85% RH (non-condensing) 20 - 85% RH (non-condensing) 20 - 85% RH (non-condensing) 20 - 85% RH (non-condensing) 20 - 85% RH (non-condensing) 20 - 85% RH (non-condensing) 20 - 85% RH (non-condensing) 20 - 85% RH (non-condensing) 20 - 85% RH (non-condensing) 20 - 85% RH (non-condensing)
Operating System Proprietary OS based on Android 10.0. Google Play and third-party apps are not supported by Planar. Proprietary OS based on Android 10.0. Google Play and third-party apps are not supported by Planar. Proprietary OS based on Android 10.0. Google Play and third-party apps are not supported by Planar. Proprietary OS based on Android 10.0. Google Play and third-party apps are not supported by Planar. Proprietary OS based on Android 10.0. Google Play and third-party apps are not supported by Planar. Proprietary OS based on Android 10.0. Google Play and third-party apps are not supported by Planar. Proprietary OS based on Android 10.0. Google Play and third-party apps are not supported by Planar. Proprietary OS based on Android 10.0. Google Play and third-party apps are not supported by Planar. Proprietary OS based on Android 10.0. Google Play and third-party apps are not supported by Planar. Proprietary OS based on Android 10.0. Google Play and third-party apps are not supported by Planar. Proprietary OS based on Android 10.0. Google Play and third-party apps are not supported by Planar. Proprietary OS based on Android 10.0. Google Play and third-party apps are not supported by Planar.
Storage TBDGB (10.5GB available) TBDGB (10.5GB available) TBDGB (10.5GB available) TBDGB (10.5GB available) TBDGB (10.5GB available) TBDGB (10.5GB available) TBDGB (10.5GB available) TBDGB (10.5GB available) TBDGB (10.5GB available) TBDGB (10.5GB available) TBDGB (10.5GB available) TBDGB (10.5GB available)
ENERGY STAR® Certified Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Cyber Security EN 303 645 certified EN 303 645 certified EN 303 645 certified EN 303 645 certified EN 303 645 certified EN 303 645 certified EN 303 645 certified EN 303 645 certified EN 303 645 certified EN 303 645 certified EN 303 645 certified EN 303 645 certified
Planar Part Number 998-3474-00 998-3480-00 998-3475-00 998-3481-00 998-3476-00 998-3482-00 998-3477-00 998-3483-00 998-3478-00 998-3484-00 998-3479-00 998-3485-00
Protective Glass - 2mm with AG coating - 2mm with AG coating - 2mm with AG coating - 2mm with AG coating - 2mm with AG coating - 2mm with AG coating
Touch Technology - 20 points - 20 points - 20 points - 20 points - 20 points - 20 points
OS Compatibility - Windows 10, 11, Mac OSX and Linux - Windows 10, 11, Mac OSX and Linux - Windows 10, 11, Mac OSX and Linux - Windows 10, 11, Mac OSX and Linux - Windows 10, 11, Mac OSX and Linux - Windows 10, 11, Mac OSX and Linux
Display Resolution Ultra HD (3840 x 2160) Ultra HD (3840 x 2160) Ultra HD (3840 x 2160) Ultra HD (3840 x 2160) Ultra HD (3840 x 2160) Ultra HD (3840 x 2160) Ultra HD (3840 x 2160) Ultra HD (3840 x 2160) Ultra HD (3840 x 2160) Ultra HD (3840 x 2160) Ultra HD (3840 x 2160) Ultra HD (3840 x 2160)
Screen Size 109cm / 43" (diagonal) 109cm / 43" (diagonal) 127cm / 50" (diagonal) 127cm / 50" (diagonal) 140cm / 55" (diagonal) 140cm / 55" (diagonal) 165cm / 65" (diagonal) 165cm / 65" (diagonal) 190cm / 75" (diagonal) 190cm / 75" (diagonal) 218cm / 86" (diagonal) 218cm / 86" (diagonal)
Aspect Ratio 16:9 16:9 16:9 16:9 16:9 16:9 16:9 16:9 16:9 16:9 16:9 16:9
Display Technology Direct-lit LED LCD Direct-lit LED LCD Direct-lit LED LCD Direct-lit LED LCD Direct-lit LED LCD Direct-lit LED LCD Direct-lit LED LCD Direct-lit LED LCD Direct-lit LED LCD Direct-lit LED LCD Direct-lit LED LCD Direct-lit LED LCD
Viewing Angle (typ) 178° 178° 178° 178° 178° 178° 178° 178° 178° 178° 178° 178°
Backlight LED LED LED LED LED LED LED LED LED LED LED LED
Backlight life (half brightness) 30,000 hrs (min) 30,000 hrs (min) 30,000 hrs (min) 30,000 hrs (min) 30,000 hrs (min) 30,000 hrs (min) 30,000 hrs (min) 30,000 hrs (min) 30,000 hrs (min) 30,000 hrs (min) 30,000 hrs (min) 30,000 hrs (min)
Response Time (typ) 8 ms 8 ms 9.5 ms 9.5 ms 8 ms 8 ms 8 ms 8 ms 8 ms 8 ms 8 ms 8 ms
Frame Rate (Hz) 60Hz 60Hz 60Hz 60Hz 60Hz 60Hz 60Hz 60Hz 60Hz 60Hz 60Hz 60Hz
Kontrast 1200:1 1200:1 5000:1 5000:1 1200:1 1200:1 1200:1 1200:1 5000:1 5000:1 1200:1 1200:1
Color Gamut 72% NTSC 72% NTSC 72% NTSC 72% NTSC 72% NTSC 72% NTSC 72% NTSC 72% NTSC 72% NTSC 72% NTSC 72% NTSC 72% NTSC
Display Color >1 billion colors. Full 10 bit data path >1 billion colors. Full 10 bit data path >1 billion colors. Full 10 bit data path >1 billion colors. Full 10 bit data path >1 billion colors. Full 10 bit data path >1 billion colors. Full 10 bit data path >1 billion colors. Full 10 bit data path >1 billion colors. Full 10 bit data path >1 billion colors. Full 10 bit data path >1 billion colors. Full 10 bit data path >1 billion colors. Full 10 bit data path >1 billion colors. Full 10 bit data path
External Connections HDMI® x 2 (HDCP 2.2), USB-C x 1, VGA x 1, USB 3.0 x1, USB 2.0 x1, Media Player HDMI® x 2 (HDCP 2.2), USB-C x 1, VGA x 1, USB 3.0 x1, USB 2.0 x1, Media Player, USB-B (for touch controller) HDMI® x 2 (HDCP 2.2), USB-C x 1, VGA x 1, USB 3.0 x1, USB 2.0 x1, Media Player HDMI® x 2 (HDCP 2.2), USB-C x 1, VGA x 1, USB 3.0 x1, USB 2.0 x1, Media Player, USB-B (for touch controller) HDMI® x 2 (HDCP 2.2), USB-C x 1, VGA x 1, USB 3.0 x1, USB 2.0 x1, Media Player HDMI® x 2 (HDCP 2.2), USB-C x 1, VGA x 1, USB 3.0 x1, USB 2.0 x1, Media Player, USB-B (for touch controller) HDMI® x 2 (HDCP 2.2), USB-C x 1, VGA x 1, USB 3.0 x1, USB 2.0 x1, Media Player HDMI® x 2 (HDCP 2.2), USB-C x 1, VGA x 1, USB 3.0 x1, USB 2.0 x1, Media Player HDMI® x 2 (HDCP 2.2), USB-C x 1, VGA x 1, USB 3.0 x1, USB 2.0 x1, Media Player HDMI® x 2 (HDCP 2.2), USB-C x 1, VGA x 1, USB 3.0 x1, USB 2.0 x1, Media Player, USB-B (for touch controller) HDMI® x 2 (HDCP 2.2), USB-C x 1, VGA x 1, USB 3.0 x1, USB 2.0 x1, Media Player HDMI® x 2 (HDCP 2.2), USB-C x 1, VGA x 1, USB 3.0 x1, USB 2.0 x1, Media Player, USB-B (for touch controller)
Modes 3840x2160 @ 24/25/30/60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 50/60Hz; 1080i @ 50/60 Hz 3840x2160 @ 24/25/30/60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 50/60Hz; 1080i @ 50/60 Hz 3840x2160 @ 24/25/30/60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 50/60Hz; 1080i @ 50/60 Hz 3840x2160 @ 24/25/30/60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 50/60Hz; 1080i @ 50/60 Hz 3840x2160 @ 24/25/30/60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 50/60Hz; 1080i @ 50/60 Hz 3840x2160 @ 24/25/30/60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 50/60Hz; 1080i @ 50/60 Hz 3840x2160 @ 24/25/30/60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 50/60Hz; 1080i @ 50/60 Hz 3840x2160 @ 24/25/30/60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 50/60Hz; 1080i @ 50/60 Hz 3840x2160 @ 24/25/30/60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 50/60Hz; 1080i @ 50/60 Hz 3840x2160 @ 24/25/30/60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 50/60Hz; 1080i @ 50/60 Hz 3840x2160 @ 24/25/30/60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 50/60Hz; 1080i @ 50/60 Hz 3840x2160 @ 24/25/30/60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 50/60Hz; 1080i @ 50/60 Hz
Display Control IR, RS-232, LAN, HDMI-CEC, Keypad IR, RS-232, LAN, HDMI-CEC, Keypad IR, RS-232, LAN, HDMI-CEC, Keypad IR, RS-232, LAN, HDMI-CEC, Keypad IR, RS-232, LAN, HDMI-CEC, Keypad IR, RS-232, LAN, HDMI-CEC, Keypad IR, RS-232, LAN, HDMI-CEC, Keypad IR, RS-232, LAN, HDMI-CEC, Keypad IR, RS-232, LAN, HDMI-CEC, Keypad IR, RS-232, LAN, HDMI-CEC, Keypad IR, RS-232, LAN, HDMI-CEC, Keypad IR, RS-232, LAN, HDMI-CEC, Keypad
Orientation Landscape/Portrait Landscape/Portrait Landscape/Portrait Landscape/Portrait Landscape/Portrait Landscape/Portrait Landscape/Portrait Landscape/Portrait Landscape/Portrait Landscape/Portrait Landscape/Portrait Landscape/Portrait
Bezel Width 0.4" (9.9mm) 0.8" (19.5mm) 0.4" (10.9mm) 0.8" (19.5mm) 0.4" (10.9mm) 0.8" (19.5mm) 0.4" (10.9mm) 0.8" (19.5mm) 0.6" (14.9mm) 1.1" (27.3mm) 0.6" (15.5mm) 1.1" (27.9mm)
Display Active Area (WxH) 941.2mm x 529.4mm (37.1" x 20.8") 943.2mm x 531.4mm (37.1" x 20.9") 1099.8mm x 620.4mm (43.3" x 24.4") 1097.8mm x 618.4mm (43.2" x 24.3") 1213.6mm x 684.4mm (47.8” x 26.9”) 1211.6mm x 682.4mm (47.7" x 26.7") 1432.5mm x 807.5mm (56.4” x 31.8”) 1434.3mm x 809.3mm (56.5" x 31.9") 1653.7mm x 931.9mm (65.1” x 36.7”) 1652.2mm x 930.5mm (65.0” x 36.7”) 1898.0mm x 1069.0mm (74.7” x 42.1”) 1897.0mm x 1068.0mm (74.7" x 42.0")
Display Edge to Active Area 1.1" (26.7mm) 1.1" (26.7mm) 1.1" (26.7mm) 1.1" (26.7mm) 1.1" (26.7mm) 1.1" (26.7mm) 1.1" (26.7mm) 1.1" (26.7mm) 1.1" (26.7mm) 1.1" (26.7mm) 1.1" (26.7mm) 1.1" (26.7mm)
Display Weight (kg) 9.2 kg (20.3 lbs) 12.9 kg (28.4 lbs) 13.2 kg (29.1 lbs) 17.7 kg (39.0 lbs) 15.9 kg (35.1 lbs) 21.0 kg (46.3 lbs) 21.6 kg (47.6 lbs) 29.0 kg (63.9 lbs) 36.1 kg (79.6 lbs) 47.1 kg (103.9 lbs) 47.3 kg (103.9 lbs) 60.9 kg (134.3 lbs)
Audio Input PC Line In PC Line In PC Line In PC Line In PC Line In PC Line In PC Line In PC Line In PC Line In PC Line In PC Line In PC Line In
Audio Output PC Line Out, S/PDIF PC Line Out, S/PDIF PC Line Out, S/PDIF PC Line Out, S/PDIF PC Line Out, S/PDIF PC Line Out, S/PDIF PC Line Out, S/PDIF PC Line Out, S/PDIF PC Line Out, S/PDIF PC Line Out, S/PDIF PC Line Out, S/PDIF PC Line Out, S/PDIF
Speakers 10W x 2 built-in 10W x 2 built-in 10W x 2 built-in 10W x 2 built-in 10W x 2 built-in 10W x 2 built-in 10W x 2 built-in 10W x 2 built-in 10W x 2 built-in 10W x 2 built-in 10W x 2 built-in 10W x 2 built-in
Enclosure Plastic rear enclosure Plastic rear enclosure Plastic rear enclosure Plastic rear enclosure Plastic rear enclosure Plastic rear enclosure Metal rear enclosure Metal rear enclosure Metal rear enclosure Plastic rear enclosure Metal rear enclosure Plastic rear enclosure
Mounting VESA: 100mm x 200mm VESA: 100mm x 200mm VESA: 200mm x 200mm VESA: 200mm x 200mm VESA: 300mm x 300mm VESA: 300mm x 300mm VESA: 400mm x 400mm VESA: 400mm x 400mm VESA: 600mm x 400mm VESA: 600mm x 400mm VESA: 600mm x 400mm VESA: 600mm x 400mm
Fanless Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Line Voltage 100-240V; 50/60Hz 100-240V; 50/60Hz 100-240V; 50/60Hz 100-240V; 50/60Hz 100-240V; 50/60Hz 100-240V; 50/60Hz 100-240V; 50/60Hz 100-240V; 50/60Hz 100-240V; 50/60Hz 100-240V; 50/60Hz 100-240V; 50/60Hz 100-240V; 50/60Hz
Power Consumption (typ) 95W (standby: <0.5W) 95W (standby: <0.5W) 100W (standby: <0.5W) 100W (standby: <0.5W) 116W (standby: <0.5W) 116W (standby: <0.5W) 130W (standby: <0.5W) 130W (standby: <0.5W) 150W (standby: <0.5W) 150W (standby: <0.5W) 260W (standby: <0.5W) 260W (standby: <0.5W)
Options / Features USB playback, logo-free bezel, lockable rear keypad USB playback, logo-free bezel, lockable rear keypad USB playback, logo-free bezel, lockable rear keypad USB playback, logo-free bezel, lockable rear keypad USB playback, logo-free bezel, lockable rear keypad USB playback, logo-free bezel, lockable rear keypad USB playback, logo-free bezel, lockable rear keypad USB playback, logo-free bezel, lockable rear keypad USB playback, logo-free bezel, lockable rear keypad USB playback, logo-free bezel, lockable rear keypad USB playback, logo-free bezel, lockable rear keypad USB playback, logo-free bezel, lockable rear keypad
Approvals FCC Class A, cTUVus, CE, RoHS, EN 303 645 FCC Class A, cTUVus, CE, RoHS, EN 303 645 FCC Class A, cTUVus, CE, RoHS, EN 303 645 FCC Class A, cTUVus, CE, RoHS, EN 303 645 FCC Class A, cTUVus, CE, RoHS, EN 303 645 FCC Class A, cTUVus, CE, RoHS, EN 303 645 FCC Class A, cTUVus, CE, RoHS, EN 303 645 FCC Class A, cTUVus, CE, RoHS, EN 303 645 FCC Class A, cTUVus, CE, RoHS, EN 303 645 FCC Class A, cTUVus, CE, RoHS, EN 303 645 FCC Class A, cTUVus, CE, RoHS, EN 303 645 FCC Class A, cTUVus, CE, RoHS, EN 303 645
Security No WiFi, Secure Shell (SSH) protocol, EN 303 645 certified No WiFi, Secure Shell (SSH) protocol, EN 303 645 certified No WiFi, Secure Shell (SSH) protocol, EN 303 645 certified No WiFi, Secure Shell (SSH) protocol, EN 303 645 certified No WiFi, Secure Shell (SSH) protocol, EN 303 645 certified No WiFi, Secure Shell (SSH) protocol, EN 303 645 certified No WiFi, Secure Shell (SSH) protocol, EN 303 645 certified No WiFi, Secure Shell (SSH) protocol, EN 303 645 certified No WiFi, Secure Shell (SSH) protocol, EN 303 645 certified No WiFi, Secure Shell (SSH) protocol, EN 303 645 certified No WiFi, Secure Shell (SSH) protocol, EN 303 645 certified No WiFi, Secure Shell (SSH) protocol, EN 303 645 certified
Warranty 3 years 3 years 3 years 3 years 3 years 3 years 3 years 3 years 3 years 3 years 3 years 3 years
Recommended Usage Up to 16 hours per day Up to 16 hours per day Up to 16 hours per day Up to 16 hours per day Up to 16 hours per day Up to 16 hours per day Up to 16 hours per day Up to 16 hours per day Up to 16 hours per day Up to 16 hours per day Up to 16 hours per day Up to 16 hours per day
In the Box SLM432 display, C14 connector US power cord - 1.8m, C14 connector EU power cord - 1.8m, HDMI cable - 1.8m, USB-C cable 1.8m, RS-232 cable, IR cable, remote control, cable clamps, Quick Start Guide SLM432-T display, C14 connector US power cord - 1.8m, C14 connector EU power cord - 1.8m, HDMI cable - 1.8m, USB-C cable 1.8m, RS-232 cable, IR cable, USB A to B cable, remote control, cable clamps, 3mm tip passive stylus x1, Quick Start Guide SLM502 display, C14 connector US power cord - 1.8m, C14 connector EU power cord - 1.8m, HDMI cable - 1.8m, USB-C cable 1.8m, RS-232 cable, IR cable, remote control, cable clamps, Quick Start Guide SLM502-T display, C14 connector US power cord - 1.8m, C14 connector EU power cord - 1.8m, HDMI cable - 1.8m, USB-C cable 1.8m, RS-232 cable, IR cable, USB A to B cable, remote control, cable clamps, 3mm tip passive stylus x1, Quick Start Guide SLM552 display, C14 connector US power cord - 1.8m, C14 connector EU power cord - 1.8m, HDMI cable - 1.8m, USB-C cable 1.8m, RS-232 cable, IR cable, remote control, cable clamps, Quick Start Guide SLM552-T display, C14 connector US power cord - 1.8m, C14 connector EU power cord - 1.8m, HDMI cable - 1.8m, USB-C cable 1.8m, RS-232 cable, IR cable, USB A to B cable, remote control, cable clamps, 3mm tip passive stylus x1, Quick Start Guide SLM652 display, C14 connector US power cord - 1.8m, C14 connector EU power cord - 1.8m, HDMI cable - 1.8m, USB-C cable 1.8m, RS-232 cable, IR cable, remote control, cable clamps, Quick Start Guide SLM652-T display, C14 connector US power cord - 1.8m, C14 connector EU power cord - 1.8m, HDMI cable - 1.8m, USB-C cable 1.8m, RS-232 cable, IR cable, USB A to B cable, remote control, cable clamps, 3mm tip passive stylus x1, Quick Start Guide SLM752 display, C14 connector US power cord - 1.8m, C14 connector EU power cord - 1.8m, HDMI cable - 1.8m, USB-C cable 1.8m, RS-232 cable, IR cable, remote control, cable clamps, Quick Start Guide SLM752-T display, C14 connector US power cord - 1.8m, C14 connector EU power cord - 1.8m, HDMI cable - 1.8m, USB-C cable 1.8m, RS-232 cable, IR cable, USB A to B cable, remote control, cable clamps, 3mm tip passive stylus x1, Quick Start Guide SLM862 display, C14 connector US power cord - 1.8m, C14 connector EU power cord - 1.8m, HDMI cable - 1.8m, USB-C cable 1.8m, RS-232 cable, IR cable, remote control, cable clamps, Quick Start Guide SLM862-T display, C14 connector US power cord - 1.8m, C14 connector EU power cord - 1.8m, HDMI cable - 1.8m, USB-C cable 1.8m, RS-232 cable, IR cable, USB A to B cable, remote control, cable clamps, 3mm tip passive stylus x1, Quick Start Guide
UPC 8 10069 81090 4 8 10069 81096 6 8 10069 81091 1 8 10069 81097 3 8 10069 81092 8 8 10069 81098 0 8 10069 81093 5 8 10069 81099 7 8 10069 81094 2 8 10069 81100 0 8 10069 81095 9 8 10069 81101 7
get_app Download Specs get_app Download Specs get_app Download Specs get_app Download Specs get_app Download Specs get_app Download Specs get_app Download Specs get_app Download Specs get_app Download Specs get_app Download Specs get_app Download Specs get_app Download Specs
Alle Spezifikationen anzeigen

Downloads

Broschüren & Anleitungen

2D CAD-Zeichnungen

3D STEP CAD-Zeichnungen

3D IGS CAD-Zeichnungen

Produktbilder
