Leyard DirectLight Pro Series
LED Video Wall Displays Made in Europe

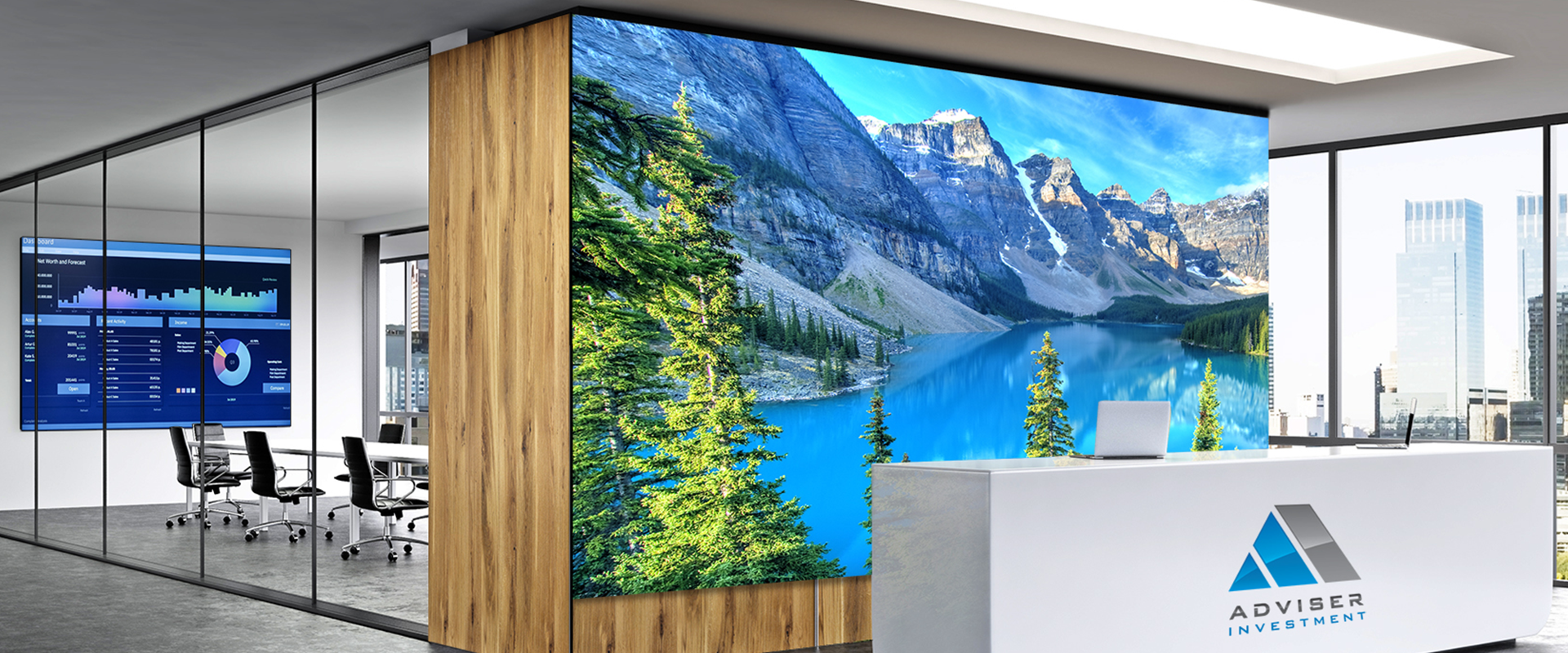

Leyard DirectLight® Pro Series fine pixel pitch LED video walls deliver beautiful images for any indoor fixed installation application. TAA-compliant, front-service video walls feature high-bandwidth models that reduce deployment complexity and maximize overall efficiency. The displays are compatible with the Planar® WallDirector™ video controller, Brompton Technology® and Colorlight for greater processing and feature flexibility.
- Customizable with 0.9, 1.2, 1.5 & 1.8mm pixel pitch
- Full front installation and serviceability
- 1000 nit brightness fits more environments and content
- Multiple chassis sizes enable faster installation
- Increased bandwidth allows fewer components with more features
- Enables unique installations with tilt and up to 90° corners
- Multiple controller options including ColorLight, Planar WallDirector, and Brompton
- Advanced control and alarm features
- Leyard Europe Evercare™ Lifetime Warranty
- Made in Europe
Product Highlights
Product Features

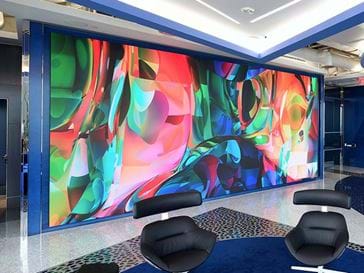

Engrained Efficiency

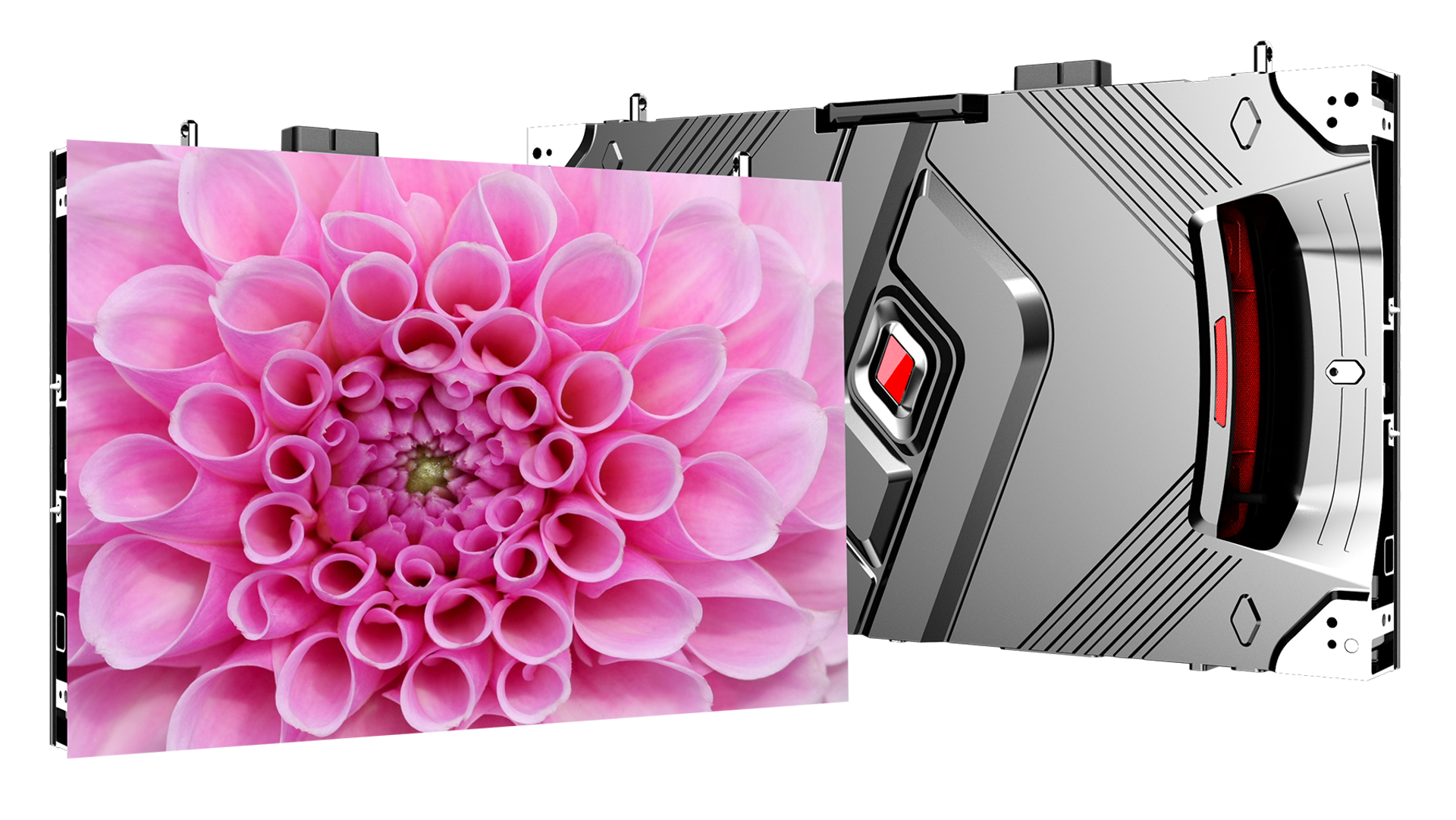

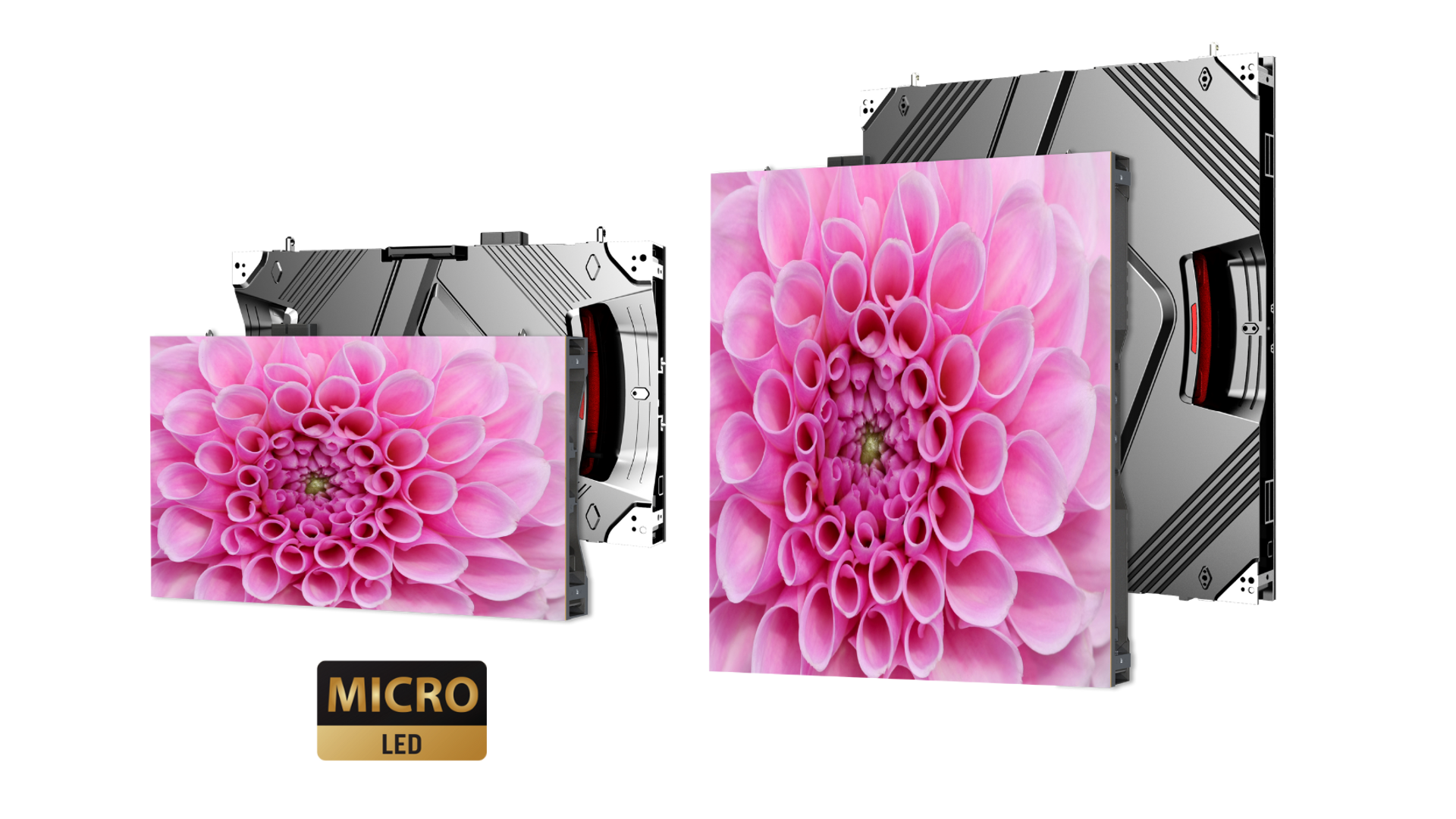

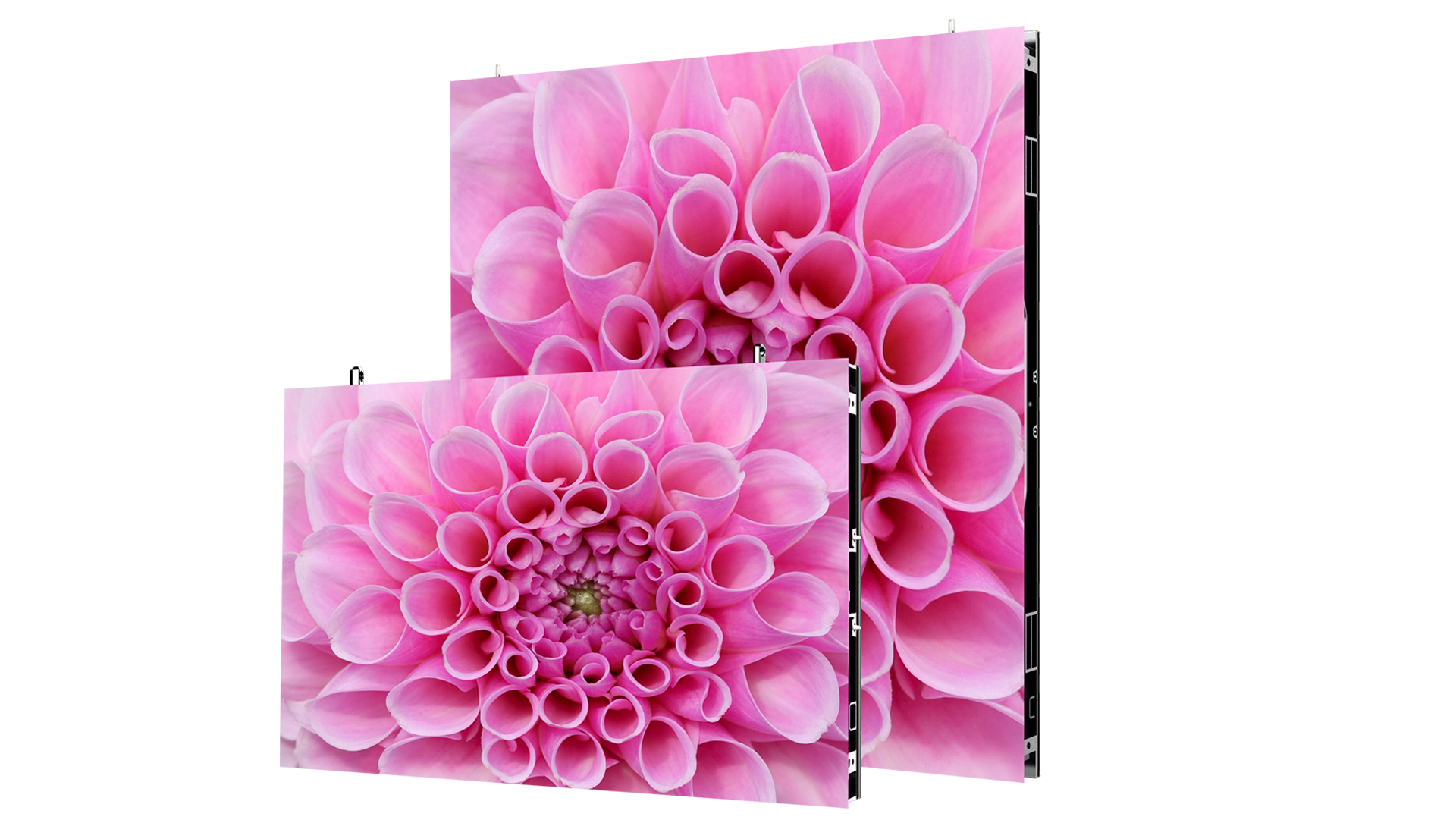

Video walls consist of both 27" and double-height 36" LED cabinets. Fewer cabinets speed installation and and reduces the potential for visible seams.
High Bandwidth in “5G architecture”
Most models offer 5x the bandwidth of competitive solutions, reducing total cost of ownership with fewer cabinets, cables, and internal components such as receivers and and power supplies.

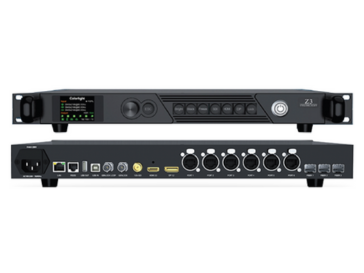

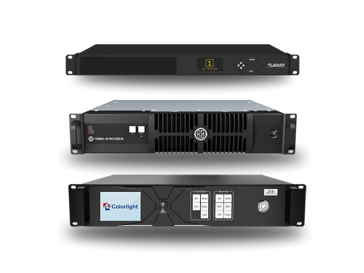

Powerful Video Controller & Software
The compact Colorlight Controller drives the video wall at native resolution, while the accompanying software simplifies setup and management. It accepts multiple 4K inputs and supports HDR, ultra-low latency and genlock. Both 5G and fiber outputs are supported.

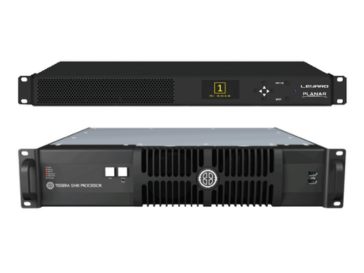

Controller Compatibility
Optionally, the new DirectLight Pro Series LED displays can be equipped with the Planar® WallDirector™ video controller or the market-leading Brompton Technology LED video processors in place of the standard controller.

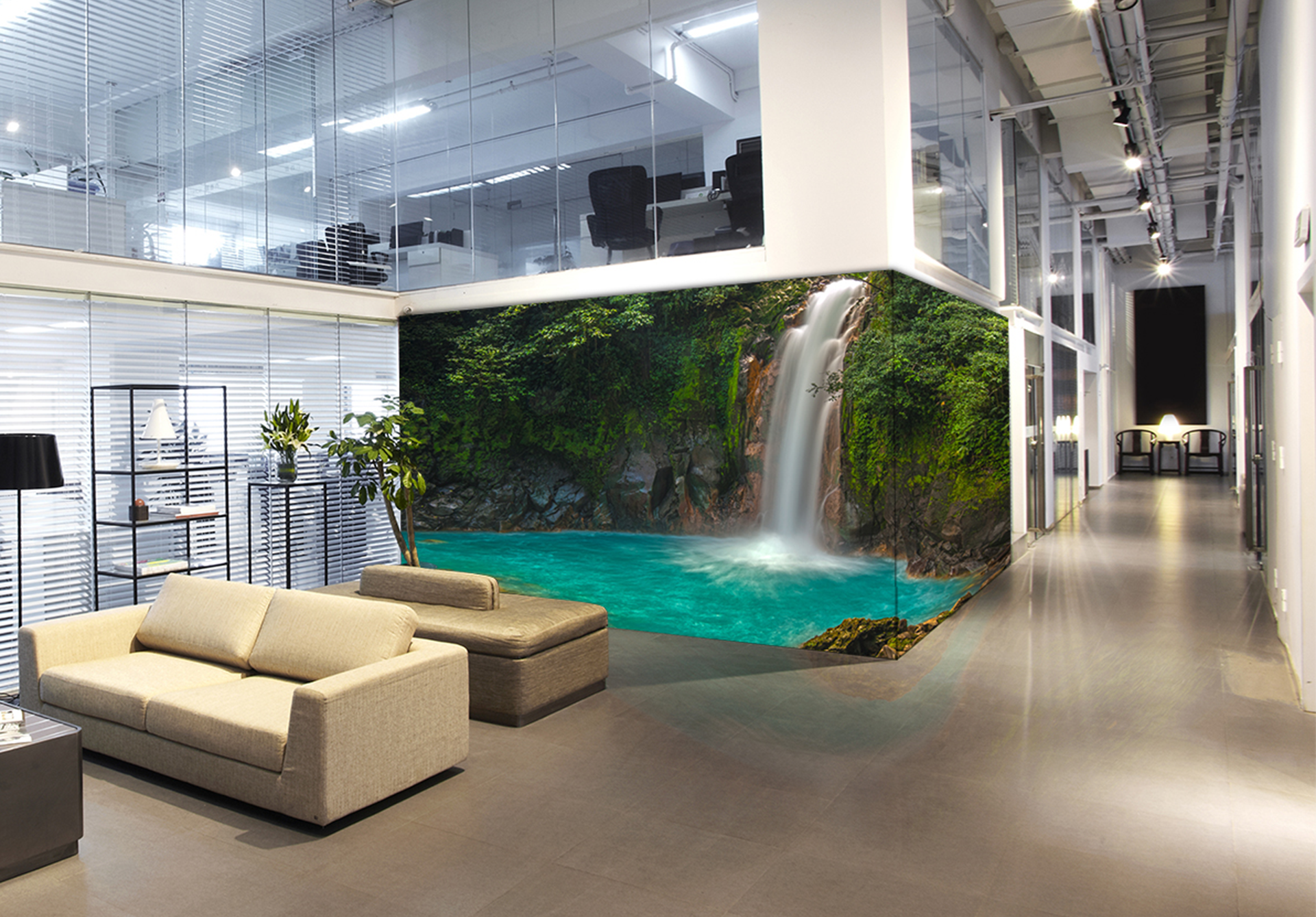

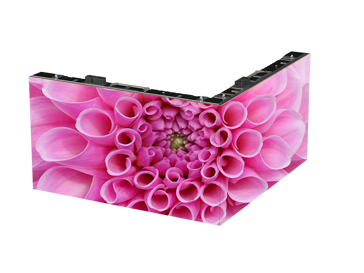

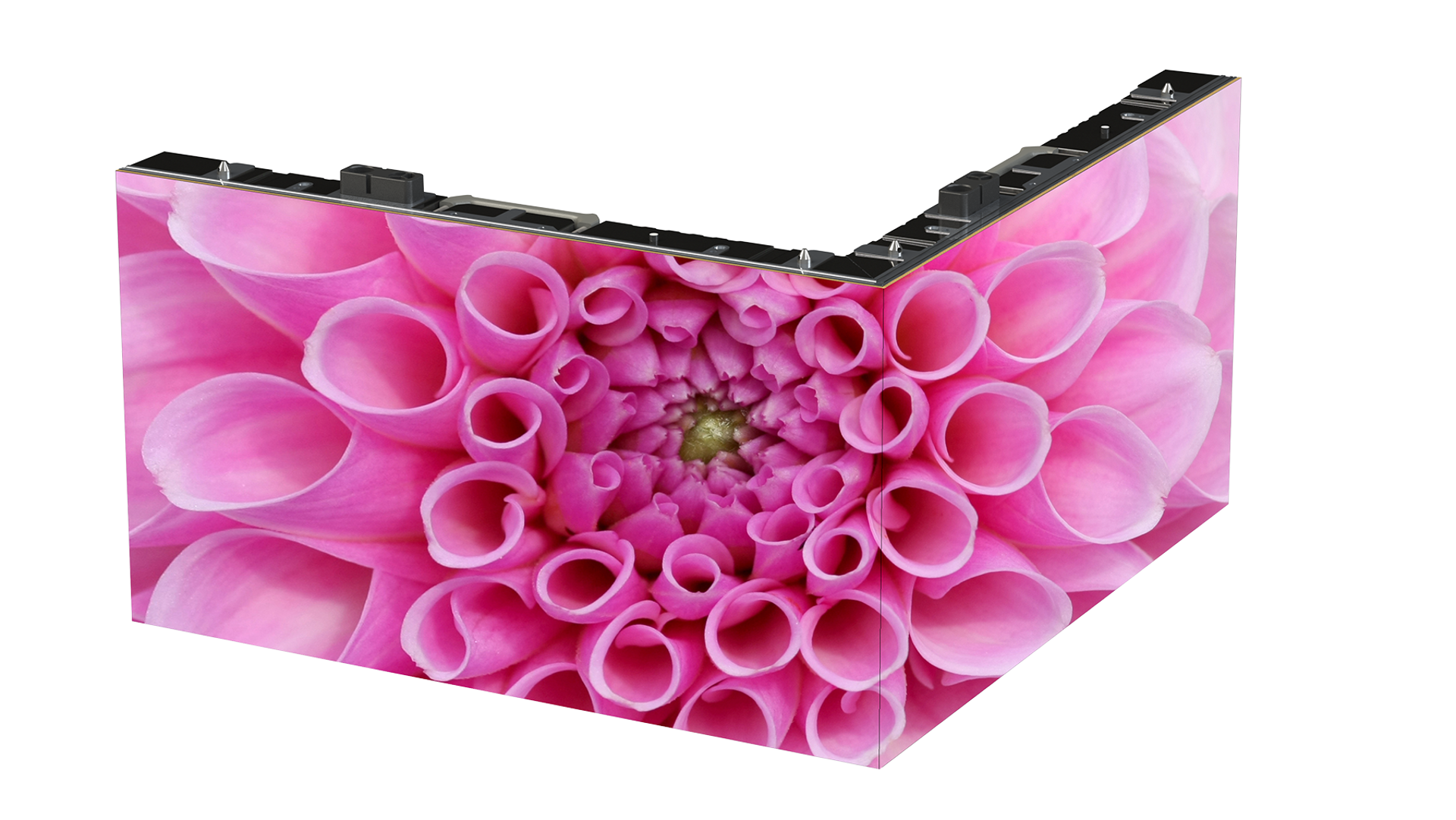

Turn the Corner
Display modules and cabinets have 45° sloped edges, allowing video walls to wrap around 90° corners for unique installations and opening the displays for use in more creative more creative applications.
HDR Ready
Displays are ready for High Dynamic Range content, maximizing the image quality of each pixel for brighter whites, darker blacks and more true-to-life colors.

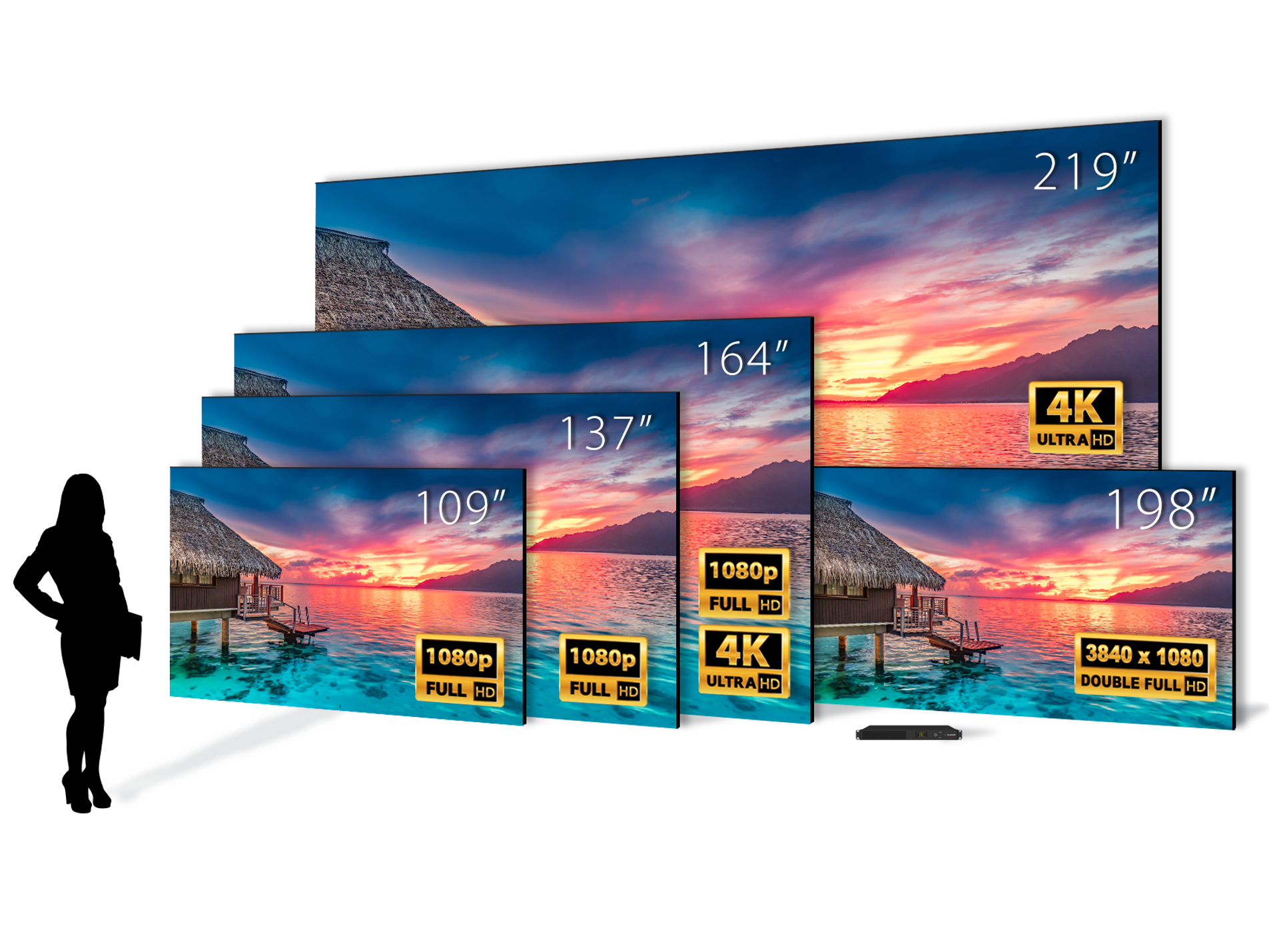

Off-the-Shelf and Complete Video Walls
Pre-configured Video Walls
The Leyard DirectLight Pro Series is available in convenient sizes and resolutions to reduce the time, complexity and cost of designing and installing a custom LED video wall. We've packaged everything an organization needs into one complete solution. Simply select the video wall size and resolution that best suits your environment and application, and you get the complete package, including the powerful Planar WallDirector video controller.
Included
Display Wall, Video Controller, Signal Cables, Power Cables, Wall Mount, Trim, Remote Control, and Module Spares (may vary by region)
Available Sizes
109" | 137" | 164" | 198" | 219"
Models
Configure a Video Wall
Leyard DirectLight Pro Series video walls feature a modular design with cabinets that stack like building blocks to create any configuration. Create video walls with custom sizes, shapes, corners, curves, and resolutions.
| Models | 1 x 1 | 2 x 2 | 3 x 3 | 4 x 4 | 5 x 5 | 6 x 6 | 7 x 7 | 8 x 8 | 9 x 9 | 10 x 10 | 11 x 11 | 12 x 12 |
| DLP0.9 | 640 x 360 | 1280 x 720 | 1920 x 1080 | 2560 x 1440 | 3200 x 1800 | 3840 x 2160 | 4480 x 2520 | 5120 x 2880 | 5760 x 3240 | 6400 x 3600 | 7040 x 3960 | 7680 x 4320 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DLP1.2 | 480 x 270 | 960 x 540 | 1440 x 810 | 1920 x 1080 | 2400 x 1350 | 2880 x 1620 | 3360 x 1890 | 3840 x 2160 | 4320 x 2430 | 4800 x 2700 | 5280 x 2970 | 5760 x 3240 |
| DLP1.5 | 384 x 216 | 768 x 432 | 1152 x 648 | 1536 x 864 | 1920 x 1080 | 2304 x 1296 | 2688 x 1512 | 3072 x 1728 | 3456 x 1944 | 3840 x 2160 | 4224 x 2376 | 4608 x 2592 |
| DLP1.8 | 320 x 180 | 640 x 360 | 960 x 540 | 1280 x 720 | 1600 x 900 | 1920 x 1080 | 2240 x 1260 | 2560 x 1440 | 2880 x 1620 | 3200 x 1800 | 3520 x 1980 | 3840 x 2160 |
| Video Wall Sizes | ||||||||||||
| Area (sqm) | 0.21 | 0.82 | 1.85 | 3.29 | 5.14 | 7.41 | 10.08 | 13.17 | 16.67 | 20.58 | 24.90 | 29.63 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Diagonal | 27'' | 55'' | 82'' | 109'' | 137'' | 164'' | 191'' | 219'' | 246'' | 273'' | 301'' | 328'' |
| Meters/ Feet | 0.3 x 0.6m 1.1 x 2.0ft |
0.7 x 1.2m 2.2 x 4.0ft |
1.0 x 1.8m 3.4 x 6.0ft |
1.4 x 2.4m 4.5 x 7.9ft |
1.7 x 3.0m 5.6 x 9.9ft |
2.0 x 3.6m 6.7 x 11.9ft |
2.4 x 4.2m 7.8 x 14.0ft |
2.7 x 4.8m 8.9 x 15.9ft |
3.1 x 5.4m 10.1 x 17.9ft |
3.4 x 6.0m 11.2 x 19.8ft |
3.7 x 6.7m 12.2 x 21.8ft |
4.1 x 7.3m 13.4 x 23.8ft |
Add-Ons & Accessories

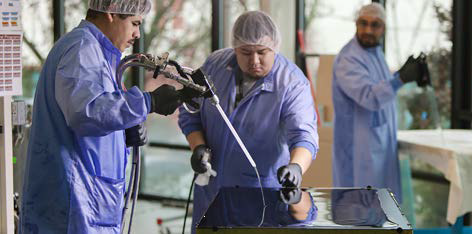

EXTENDED RUGGEDNESS & OPTICS
Displays are available with Planar® ERO-LED™ (Extended Ruggedness and Optics™) protective coating for added durability in high-traffic and interactive environments.

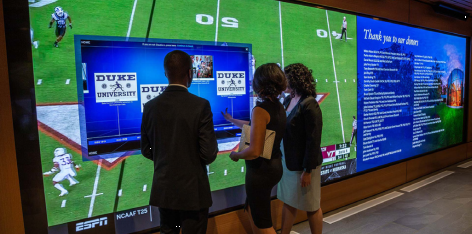

ENABLE INTERACTIVITY
Optimize video walls with a custom 32-point touch system and ERO-LED. The touch solution is not limited to a 16:9 aspect ratio, opening the door to more sizes and shapes.

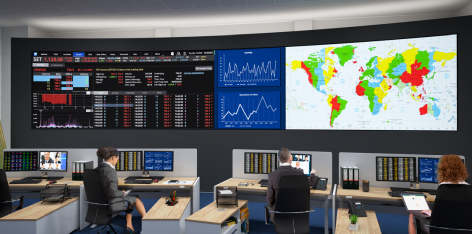

ALWAYS-ON RELIABILITY
DirectLight Pro Series displays are designed for mission-critical environments in extended or continuous operation. Control rooms and other applications that can't afford downtime benefit from exceptional 24/7 performance and an optional redundant power supply option.

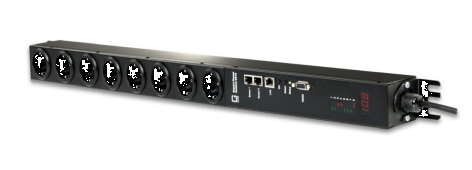

LOW-POWER STANDBY MODE
For maximum power savings and safety, we offer switched and metered PDUs as optional accessories. Controlled shutdown of displays provides energy cost and CO2 savings, as well as the highest level of security for your IT and AV infrastructure.
Specifications
| Cabinet Model | DLP 0.9 | DLP 1.2 | DLP 1.5 | DLP 1.8 |
|---|---|---|---|---|
| Pixel Pitch | 0.945mm | 1.26mm | 1.575mm | 1.89mm |
| Cabinet Resolution | 27” - 640 x 360 | 36” - 640 x 720 |
27” - 480 x 270 | 36” - 480 x 540 |
27” - 384 x 216 | 36” - 384 x 432 |
27” - 320 x 180 | 36” - 320 x 360 |
| Pixel Density | 1,119,789/sq m | 10,4032/sq ft | 629,882/sq m | 58,518/sq ft | 403,124/sq m | 37,451/sq ft | 279,947/sq m | 26,008/sq ft |
| Brightness Max, Calibration On | 1,000cd/m² | 1,000cd/m² | 1,000cd/m² | 1,000cd/m² |
| Cabinet Size (W x H x D) | 27” - 604.8 × 340.2 × 64.5mm 36” - 604.8 x 680.4 x 64.5mm |
27” - 604.8 × 340.2 × 64.5mm 36” - 604.8 x 680.4 x 64.5mm |
27” - 604.8 × 340.2 × 64.5mm 36” - 604.8 x 680.4 x 64.5mm |
27” - 604.8 × 340.2 × 64.5mm 36” - 604.8 x 680.4 x 64.5mm |
| Weight (Cabinet) | 27” - 6.94kg | 15.3lbs 36” - 13.2kg | 29.1lbs |
27” - 6.94kg | 15.3lbs 36” - 13.2kg | 29.1lbs |
27” - 6.94kg | 15.3lbs 36” - 13.2kg | 29.1lbs |
27” - 6.94kg | 15.3lbs 36” - 13.2kg | 29.1lbs |
| Installation & Service Access | Front Access, module removal. All internal electronics accessible | Front Access, module removal. All internal electronics accessible | Front Access, module removal. All internal electronics accessible | Front Access, module removal. All internal electronics accessible |
| Supported Installation Types | Standard Flat Wall | Forward Tilt: up to 10° | 90° exterior corners | Concave faceted curve | Standard Flat Wall | Forward Tilt: up to 10° | 90° exterior corners | Concave faceted curve | Standard Flat Wall | Forward Tilt: up to 10° | 90° exterior corners | Concave faceted curve | Standard Flat Wall | Forward Tilt: up to 10° | 90° exterior corners | Concave faceted curve |
| Controller Compatibility | Standard: Colorlight | Optional: Brompton & Planar WallDirector Video Controller | Standard: Colorlight | Optional: Brompton & Planar WallDirector Video Controller | Standard: Colorlight | Optional: Brompton & Planar WallDirector Video Controller | Standard: Colorlight | Optional: Brompton & Planar WallDirector Video Controller |
| Redundant PSU Option | Yes | Yes | Yes | Yes |
| Regulatory Compliance | NRTL UL 60950-1 TUV Rheinland, FCC Class A, CE EN60950-1, EN 55032 Class A and EN55024, WEEE, CISPR 32/2015 | NRTL UL 60950-1 TUV Rheinland, FCC Class A, CE EN60950-1, EN 55032 Class A and EN55024, WEEE, CISPR 32/2015 | NRTL UL 60950-1 TUV Rheinland, FCC Class A, CE EN60950-1, EN 55032 Class A and EN55024, WEEE, CISPR 32/2015 | NRTL UL 60950-1 TUV Rheinland, FCC Class A, CE EN60950-1, EN 55032 Class A and EN55024, WEEE, CISPR 32/2015 |
| Warranty | Leyard Europe EverCare Lifetime Limited Warranty (LE Sales Territories) | Leyard Europe EverCare Lifetime Limited Warranty (LE Sales Territories) | Leyard Europe EverCare Lifetime Limited Warranty (LE Sales Territories) | Leyard Europe EverCare Lifetime Limited Warranty (LE Sales Territories) |
