The Leyard Europe DirectLight Pro Complete™ Video Wall solution is available in convenient sizes and resolutions to reduce the time, complexity and cost of designing and installing a custom LED video wall. We've included everything a business needs in one complete solution. Simply select the video wall size and resolution that best suits your environment and application, and you will receive the complete package, including the LED display cases, video controller, wall mounts, trims, cables, and replacement modules.

  • Complete Direct View LED Video Wall ready to install

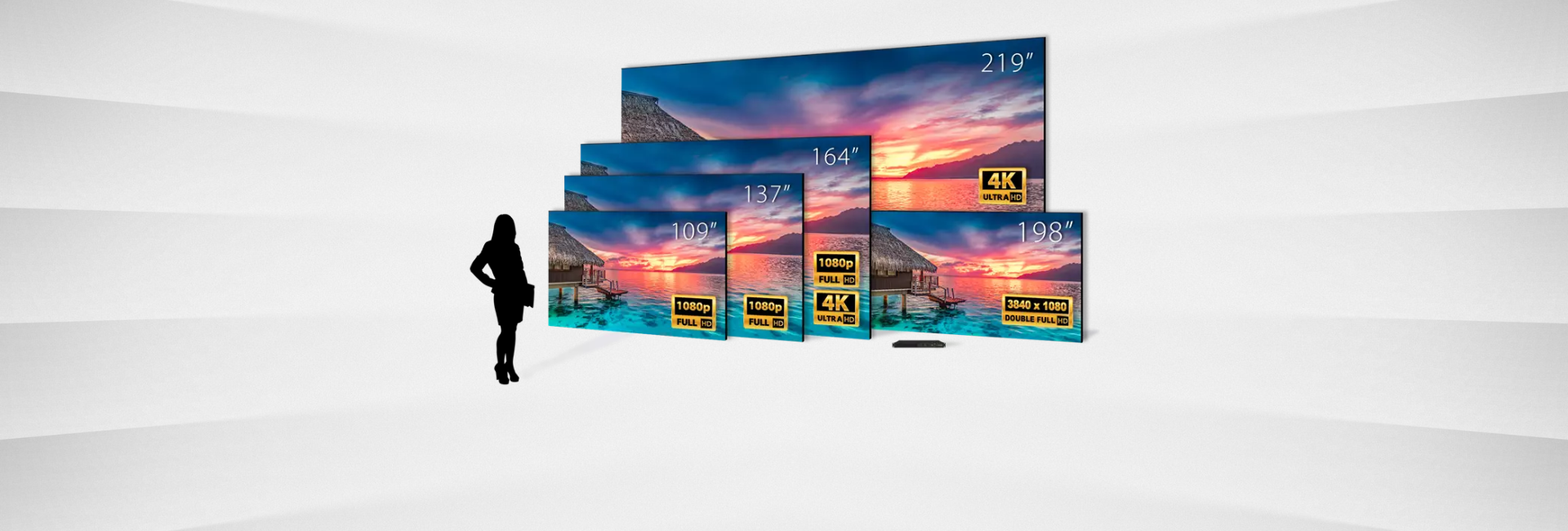

  • 4K, Full HD, Dual-Full HD video walls in convenient diagonal sizes: 109", 137", 164", 198" and 219"
  • Slim profile with full front installation and serviceability
  • Leyard Europe Evercare Limited Lifetime Warranty
  • Made in Europe

Product Highlights

Product Features

Engrained Efficiency

Video walls consist of both 27" and double-height 36" LED cabinets. Fewer cabinets speed installation and and reduces the potential for visible seams.

High Bandwidth in “5G architecture”

Most models offer 5x the bandwidth of competitive solutions, reducing total cost of ownership with fewer cabinets, cables, and internal components such as receivers and and power supplies.

Powerful Video Controller & Software

The compact Colorlight Controller drives the video wall at native resolution, while the accompanying software simplifies setup and management. It accepts multiple 4K inputs and supports HDR, ultra-low latency and genlock. Both 5G and fiber outputs are supported.

Controller Compatibility

Optionally, the new DirectLight Pro Series LED displays can be equipped with the Planar® WallDirector™ video controller or the market-leading Brompton Technology LED video processors in place of the standard controller.

Turn the Corner

Display modules and cabinets have 45° sloped edges, allowing video walls to wrap around 90° corners for unique installations and opening the displays for use in more creative more creative applications.

HDR Ready

Displays are ready for High Dynamic Range content, maximizing the image quality of each pixel for brighter whites, darker blacks and more true-to-life colors.

Add-Ons & Accessories

EXTENDED RUGGEDNESS & OPTICS

Displays are available with Planar® ERO-LED™ (Extended Ruggedness and Optics™) protective coating for added durability in high-traffic and interactive environments.

ENABLE INTERACTIVITY

Optimize video walls with a custom 32-point touch system and ERO-LED. The touch solution is not limited to a 16:9 aspect ratio, opening the door to more sizes and shapes.

ALWAYS-ON RELIABILITY

DirectLight Pro Series displays are designed for mission-critical environments in extended or continuous operation. Control rooms and other applications that can't afford downtime benefit from exceptional 24/7 performance and an optional redundant power supply option.

LOW-POWER STANDBY MODE

For maximum power savings and safety, we offer switched and metered PDUs as optional accessories. Controlled shutdown of displays provides energy cost and CO2 savings, as well as the highest level of security for your IT and AV infrastructure.

Specifications

Complete Model HD109 HD137 HD164 DHD198 UHD164 UHD219
Display Technology Direct View LED Direct View LED Direct View LED Direct View LED Direct View LED Direct View LED
Display Resolution 1920 x 1080 1920 x 1080 1920 x 1080 3840 x 1080 3840 x 2160 3840 x 2160
Display Size (Diagonal) 109in 137in 164in 198in 164in 219in
Display Size (W x H) 2419 x 1361mm |
7.9ft x 4.5ft
3024 x 1701mm |
9.9ft x 5.6ft
3629 x 2041mm |
11.9ft x 6.7ft
4839 x 1361mm |
15.9ft x 4.5ft
3629 x 2041mm |
11.9ft x 6.7ft
4839 x 2722mm |
15.9ft x 8.9ft
Pixel Pitch 1.26mm 1.575mm 1.89mm 1.26mm 0.9mm 1.26mm
Brightness Max, Calibration On 1,000cd/m² 1,000cd/m² 1,000cd/m² 1,000cd/m² 1,000cd/m² 1,000cd/m²
Contrast Ratio 10000:1 10000:1 10000:1 10000:1 10000:1 10000:1
Brightness Uniformity ≥97% ≥97% ≥97% ≥97% ≥97% ≥97%
Colour Uniformity ≥97% ≥97% ≥97% ≥97% ≥97% ≥97%
LED Refresh Rate (Hz) 3840 3840 3840 3840 3840 3840
Colour Temperature Range (k) 3000 - 10000 3000 - 10000 3000 - 10000 3000 - 10000 3000 - 10000 3000 - 10000
Viewing Angle (50% Brightness) >170° Horizontal; >140° Vertical >170° Horizontal; >140° Vertical >170° Horizontal; >140° Vertical >170° Horizontal; >140° Vertical >170° Horizontal; >140° Vertical >170° Horizontal; >140° Vertical
Video Controller Size 1U rack-mounted controller, 19” rack 1U rack-mounted controller, 19” rack 1U rack-mounted controller, 19” rack 1U rack-mounted controller, 19” rack 1U rack-mounted controller, 19” rack 1U rack-mounted controller, 19” rack
Video Input Resolution, Max 4096 x 2160 @ 60hz 4096 x 2160 @ 60hz 4096 x 2160 @ 60hz 4096 x 2160 @ 60hz 4096 x 2160 @ 60hz 4096 x 2160 @ 60hz
Frame Rate 50, 60hz 50, 60hz 50, 60hz 50, 60hz 50, 60hz 50, 60hz
Video Inputs 1x HDMI2.0, 1x DP1.2, 1x 12G-SDI (w/ HDCP 2.2) 1x HDMI2.0, 1x DP1.2, 1x 12G-SDI (w/ HDCP 2.2) 1x HDMI2.0, 1x DP1.2, 1x 12G-SDI (w/ HDCP 2.2) 1x HDMI2.0, 1x DP1.2, 1x 12G-SDI (w/ HDCP 2.2) 1x HDMI2.0, 1x DP1.2, 1x 12G-SDI (w/ HDCP 2.2) 1x HDMI2.0, 1x DP1.2, 1x 12G-SDI (w/ HDCP 2.2)
HDR Support Yes Yes Yes Yes Yes Yes
Control LAN / USB / RS232 control LAN / USB / RS232 control LAN / USB / RS232 control LAN / USB / RS232 control LAN / USB / RS232 control LAN / USB / RS232 control
Installation & Service Access Front, tool supplied, module locking feature Front, tool supplied, module locking feature Front, tool supplied, module locking feature Front, tool supplied, module locking feature Front, tool supplied, module locking feature Front, tool supplied, module locking feature
Runtime Duty Cycle (Hours/Day) 24 x 7 24 x 7 24 x 7 24 x 7 24 x 7 24 x 7
LED Lifetime, Typical 100,000hrs 100,000hrs 100,000hrs 100,000hrs 100,000hrs 100,000hrs
Line Voltage 100-240V AC, 50/60hz 100-240V AC, 50/60hz 100-240V AC, 50/60hz 100-240V AC, 50/60hz 100-240V AC, 50/60hz 100-240V AC, 50/60hz
Power Consumption, Maximum 2230 watts 3445 watts 4930 watts 4390 watts 4930 watts 8710 watts
Display Weight 112kg | 247lbs 176kg | 388lbs 249kg | 547lbs 222kg | 489lbs 255kg | 561lbs 439kg | 965lbs
Storage Temperature/Humidity
(degrees F/C)
-40° to 60° C | -40° to 140° F / 10-85% relative humidity, non-condensing -40° to 60° C | -40° to 140° F / 10-85% relative humidity, non-condensing -40° to 60° C | -40° to 140° F / 10-85% relative humidity, non-condensing -40° to 60° C | -40° to 140° F / 10-85% relative humidity, non-condensing -40° to 60° C | -40° to 140° F / 10-85% relative humidity, non-condensing -40° to 60° C | -40° to 140° F / 10-85% relative humidity, non-condensing
Operating Temperature/Humidity
(degrees F/C)
-20° to 40° C | -4° to 104° F / 10-80% relative humidity, non-condensing -20° to 40° C | -4° to 104° F / 10-80% relative humidity, non-condensing -20° to 40° C | -4° to 104° F / 10-80% relative humidity, non-condensing -20° to 40° C | -4° to 104° F / 10-80% relative humidity, non-condensing -20° to 40° C | -4° to 104° F / 10-80% relative humidity, non-condensing -20° to 40° C | -4° to 104° F / 10-80% relative humidity, non-condensing
Warranty Leyard Europe EverCare Lifetime Limited Warranty (LE Sales Territories) Leyard Europe EverCare Lifetime Limited Warranty (LE Sales Territories) Leyard Europe EverCare Lifetime Limited Warranty (LE Sales Territories) Leyard Europe EverCare Lifetime Limited Warranty (LE Sales Territories) Leyard Europe EverCare Lifetime Limited Warranty (LE Sales Territories) Leyard Europe EverCare Lifetime Limited Warranty (LE Sales Territories)
Package Includes Display wall, Video Controller, Signal cables, Power cables, Wall mount, Trim, Remote Control, and Module Spares (may vary by region) Display wall, Video Controller, Signal cables, Power cables, Wall mount, Trim, Remote Control, and Module Spares (may vary by region) Display wall, Video Controller, Signal cables, Power cables, Wall mount, Trim, Remote Control, and Module Spares (may vary by region) Display wall, Video Controller, Signal cables, Power cables, Wall mount, Trim, Remote Control, and Module Spares (may vary by region) Display wall, Video Controller, Signal cables, Power cables, Wall mount, Trim, Remote Control, and Module Spares (may vary by region) Display wall, Video Controller, Signal cables, Power cables, Wall mount, Trim, Remote Control, and Module Spares (may vary by region)
