Clarity Matrix G3
LCD Video Wall System
Next-Generation LCD Video Wall Solution
The Clarity® Matrix® G3 LCD video wall system evolves the superior performance and mission-critical reliability of previous versions of the Clarity® Matrix® LCD video wall system to deliver the ultimate LCD video wall solution. Building on the achievements of the award-winning Clarity Matrix architecture, Clarity Matrix G3 combines the world's thinnest ultra-thin bezel LCD displays with industry-leading improvements in video processing, installation, management and off-board electronics to deliver a next-generation video wall solution.
Clarity Matrix G3 is available in standard (LX) high brightness (MX) 55" models. The series also offers options for protective Planar® ERO-LCD™ (Extended Ruggedness and Optics™) technology and interactive multitouch. Clarity Matrix G3 also features Planar® WallDirector™ software, which significantly reduces the time required to configure, operate and monitor the video wall.
- Next-generation LCD video wall system with built-in video wall processing
- 55” extreme narrow bezel LCD video wall with tiled bezel width as small as 0.88 mm
- Features Planar WallDirector Software for simplified installation, monitoring and management
- Integrated Planar WallSync technology eliminates video tearing and delivers genlock synchronization
- Supports 4K at up to 60Hz and scaling
- Mission-critical design for 24x7 reliability
- Includes Planar EasyAxis Mounting System for precise alignment and industry's thinnest profile
- Available with Planar ERO-LCD protective glass, fiber video extension and interactive multi-touch models
- Pre-packaged Clarity® Matrix® G3 Complete™ available in 2x2, 3x3 or 4x4 configurations
Ultimate Visual Performance
Clarity Matrix G3 features the industry's narrowest bezels, with a width of only 0.88 mm between adjacent LCD displays, for a virtually seamless video wall solution. The Clarity Matrix G3 delivers uncompromising visual performance with outstanding image quality, perfectly aligned panels and ultra-high resolution. It also includes the Planar® EasyAxis™ mounting system, which offers a mounting depth of only 3.6" (91mm) - the thinnest in the industry - for perfect panel-to-panel alignment. Clarity Matrix G3 is available with Planar ERO-LCD, an optically bonded glass front that provides increased robustness and optical performance for public areas or interactive touch applications.
Advanced Video Wall Processing
Clarity Matrix G3 takes integrated video wall processing to a new level with the off-board Planar® WallDirector™ video controller, making it the first LCD video wall solution on the market to embed advanced video processing directly into the product, delivering up to (9) 1920x1080 outputs and full 3x3 video wall capability from a single 1U controller.
Planar® Big Picture Plus™ Video Wall Processing provides more extensive on-display and off-board video wall processing and can scale sources across the entire video wall or any section of the video wall, including multiple 4K @ 60Hz signals.
With 4K Quadview, users can combine content from a higher number of independent sources, overlay a smaller image on top of a larger one with Picture-in-Picture (PiP), and incorporate up to four unique image sources into a single display. Clarity Matrix G3 supports the latest 4K connectivity standards, including both HDMI 2.0 and DisplayPort 1.2, giving customers flexibility in building their video infrastructure.
Integrated Synchronization with Genlock Technology
The Clarity Matrix G3 also features Planar® WallSync™ Genlock technology, making it the industry's first fully integrated synchronized video wall. Planar WallSync solves the challenges of genlocking and synchronizing video walls by integrating a Smart Genlock feature that automatically ensures perfectly synchronized video playback without manual configuration. Planar WallSync supports synchronization to both connected video sources and external home syncs.
Planar WallSync also corrects common video tearing artifacts that occur when playing videos with vertical content elements with horizontal movement or panning.
Designed for Mission-Critical Operations
Clarity Matrix G3 features a unique off-board electronics design for maximum reliability and minimum downtime. With the Planar Remote Power Supply® (RPS), Clarity Matrix G3 takes its unique architecture and mission-critical design to a new level. The Planar RPS features n+1 hot-swappable redundant power supplies, redundant AC input circuits, reduced thermal load, and status monitoring capabilities.
In the event of a failure, the video wall remains operational without interruption. For customers delivering highly sensitive information, the Clarity® Matrix® Fiber Video Extension Option provides a safer and longer distance option for extending video signals from the Clarity Matrix electronics to the displays.
Calibration and Uniformity Management

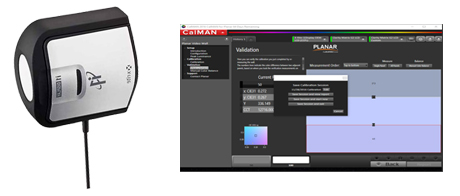

Clarity Matrix LCD video walls are factory calibrated to ensure the highest level of visual uniformity, right out of the box. In addition, Clarity Matrix G3 displays can be calibrated on-site using the optional Clarity® Matrix® ColorBalance™ calibration tool, which consists of a photo-optical sensor and software application that integrates seamlessly with the Planar Video Controller.

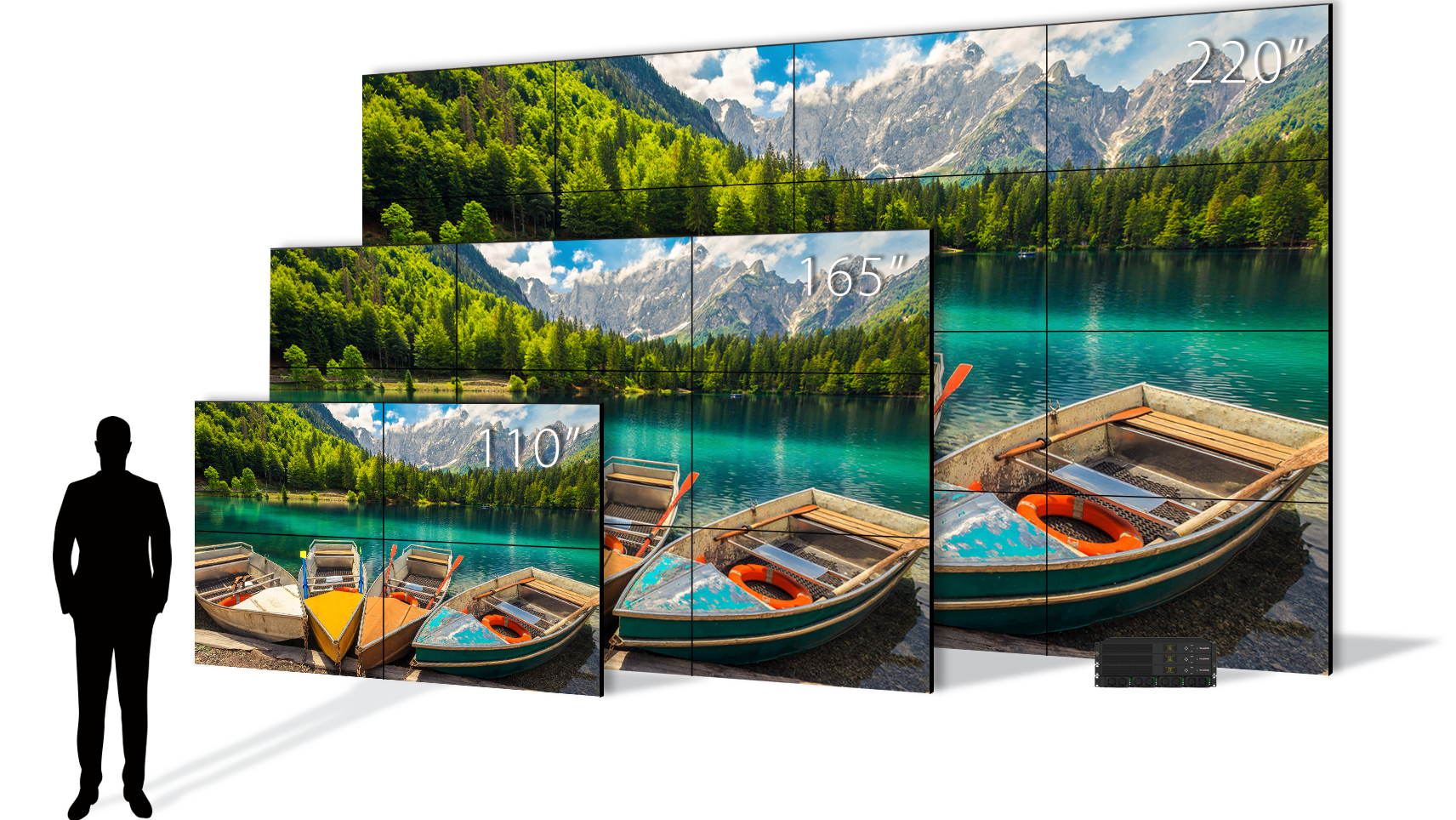

Clarity® Matrix® G3 Complete™: Off-the-Shelf LCD Video Wall System
If creating a video wall seems like too much, consider a pre-packaged Clarity® Matrix® G3 Complete™ Video Wall System. It removes complexity, cost, time and pressure of designing and installing a video wall because we’ve packaged everything in one complete solution, at a solid value. Clarity Matrix G3 Complete consists of three models that include either 4, 9 or 16 Clarity Matrix G3 LX55M video wall displays in a 2x2, 3x3 or 4x4 array; up to 220" diagonal in total. Along with the video wall displays, the solution includes all add-ons for a comprehensive video wall system, including cables, trim, mounts and the off-board Planar® WallDirector™ video controller.
Clarity Matrix G3 Models
|
|
|
|
|
|
|---|---|---|---|---|
| MX55M | 55" / 139 cm | 0.88 mm | 1920x1080 px | 700 cd/m² or nits |
| MX55X3 | 55" / 139 cm | 2.6 mm | 1920x1080 px | 700 cd/m² or nits |
| LX55M | 55" / 139 cm | 0.88 mm | 1920x1080 px | 500 cd/m² or nits |
| LX55X3 | 55" / 139 cm | 2.6 mm | 1920x1080 px | 500 cd/m² or nits |
Specifications
| Model | Clarity Matrix G3 MX55M | Clarity Matrix G3 LX55M | Clarity Matrix G3 MX55X3 | Clarity Matrix G3 LX55X3 |
|---|---|---|---|---|
| Technology | Commercial-grade LCD | Commercial-grade LCD | Commercial-grade LCD | Commercial-grade LCD |
| Per Panel Dimensions (Including Mount) | 47.6 x 26.8 x 3.5 in | 1210.5 x 681 x 90 mm | 47.6 x 26.8 x 3.5 in | 1210.5 x 681 x 90 mm | 47.7 x 26.8 x 3.6in | 1212 x 683 x 91mm | 47.7 x 26.8 x 3.6in | 1212 x 683 x 91mm |
| Diagonal | 55in | 1397mm | 55in | 1397mm | 55in | 1397mm | 55in | 1397mm |
| Native Resolution Panels | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 |
| Tiled Bezel Width | 0.88 mm | .04 in | 0.88 mm | .04 in | 2.6mm | 2.6mm |
| Thermal Expansion Gap Required | 0.4 mm | .02 in | 0.4 mm | .02 in | 0.4 mm | .02 in | 0.4 mm | .02 in |
| Power Consumption (max/display) | 235W | 235W | 215W | 160W |
| Power Supply Voltage | 100-230V AC ± 10%, 50 to 60 Hz | 100-230V AC ± 10%, 50 to 60 Hz | 100-230V AC ± 10%, 50 to 60 Hz | 100-230V AC ± 10%, 50 to 60 Hz |
| Power Status | Diagnostics LEDs, health monitoring and alerts | Diagnostics LEDs, health monitoring and alerts | Diagnostics LEDs, health monitoring and alerts | Diagnostics LEDs, health monitoring and alerts |
| Per Panel Weight (Including Mount) | 47 lbs | 21.1 kg (Landscape) 49 lbs | 22.4 kg (Portrait) | 47 lbs | 21.1 kg (Landscape) 49 lbs | 22.4 kg (Portrait) | 51.5lb | 23.4kg (Landscape) 54.4lb | 24.3kg (Portrait) | 51.5lb | 23.4kg (Landscape) 54.4lb | 24.3kg (Portrait) |
| Shipping Weight | 106 lbs | 48.1 kg (single pack) / 170 lbs | 77.1 kg (dual pack) | 106 lbs | 48.1 kg (single pack) / 170 lbs | 77.1 kg (dual pack) | 46lbs | 48.1kg (single pack) / 157lbs | 71.3kg (dual pack) | 106lbs | 48.1kg (single pack) / 157lbs | 71.3kg (dual pack) |
| Mounted Depth | 3.6in | 91.44mm (wall to front of display) | 3.6in | 91.44mm (wall to front of display) | 3.6in | 91.44mm (wall to front of display) | 3.6in | 91.44mm (wall to front of display) |
| Brightness (typ) | 700 cd/m² or nits | 500 cd/m² or nits | 700 cd/m² or nits | 500 cd/m² or nits |
| Contrast Ratio | 1400:1 | 1100:1 | 1400:1 | 1100:1 |
| Contrast Ratio - Dynamic | 10000:1 | 10000:1 | 30000:1 | 30000:1 |
| Response Time (typ) | 8 ms | 8 ms | 8 ms | 8 ms |
| Full viewing angle | 178° | 178° | 178° | 178° |
| Video Inputs (Controller) | 4x HDMI 2.0 (w/ HDCP 2.2), 1x DisplayPort 1.2 | 4x HDMI 2.0 (w/ HDCP 2.2), 1x DisplayPort 1.2 | 4x HDMI 2.0 (w/ HDCP 2.2), 1x DisplayPort 1.2 | 4x HDMI 2.0 (w/ HDCP 2.2), 1x DisplayPort 1.2 |
| Video Outputs (Controller) | 9-Output Controller: 9x RJ45 8P8C, 1x DisplayPort 1.2 | 4-Output Controller: 4x RJ45 8P8C, 1x DisplayPort 1.2 | 9-Output Controller: 9x RJ45 8P8C, 1x DisplayPort 1.2 | 4-Output Controller: 4x RJ45 8P8C, 1x DisplayPort 1.2 | 9-Output Controller: 9x RJ45 8P8C, 1x DisplayPort 1.2 | 4-Output Controller: 4x RJ45 8P8C, 1x DisplayPort 1.2 | 9-Output Controller: 9x RJ45 8P8C, 1x DisplayPort 1.2 | 4-Output Controller: 4x RJ45 8P8C, 1x DisplayPort 1.2 |
| Video Extension built-in | 200ft | 60m over STP CAT6 | 200ft | 60m over STP CAT6 | 200ft | 60m over STP CAT6 | 200ft | 60m over STP CAT6 |
| Control | IR Remote Control, RS-232, USB, Network, Leyard WallDirector Software | IR Remote Control, RS-232, USB, Network, Leyard WallDirector Software | IR Remote Control, RS-232, USB, Network, Leyard WallDirector Software | IR Remote Control, RS-232, USB, Network, Leyard WallDirector Software |
| Sync | Mini BNC In/Out | Mini BNC In/Out | Mini BNC In/Out | Mini BNC In/Out |
| Backlight Control | Individual and wall control | Individual and wall control | Individual and wall control | Individual and wall control |
| Backlight Sensing and Reporting | At display level | At display level | At display level | At display level |
| Display module position sensing | Auto-sensing integrated | Auto-sensing integrated | Auto-sensing integrated | Auto-sensing integrated |
| Backlight Life (1/2 brightness) | 50,000 Hrs | 50,000 Hrs | 50,000 Hrs | 50,000 Hrs |
| Power Supply | Offboard | Redundant Optional | Hot Swap | Offboard | Redundant Optional | Hot Swap | Offboard | Redundant Optional | Hot Swap | Offboard | Redundant Optional | Hot Swap |
| Wall Mount | Planar® EasyAxis™ Mounting System | VESA Mount (optional) | Planar® EasyAxis™ Mounting System | VESA Mount (optional) | Planar® EasyAxis™ Mounting System | VESA Mount (optional) | Planar® EasyAxis™ Mounting System | VESA Mount (optional) |
| Acoustic Noise | LCD: <30dBA (fanless), VC: 45dBA, RPS: <40dBA @ 25°C (77°F) | LCD: <30dBA (fanless), VC: 45dBA, RPS: <40dBA @ 25°C (77°F) | LCD: <30dBA (fanless), VC: 45dBA, RPS: <40dBA @ 25°C (77°F) | LCD: <30dBA (fanless), VC: 45dBA, RPS: <40dBA @ 25°C (77°F) |
| Heat Load (max/display) | 802 BTU/hr | 802 BTU/hr | 734 BTU/hr | 546 BTU/hr |
| Operating Temperature/Humidity (degrees F/C, relative humidity) | 5° to 40° C / 20-90% RH | 41° to 104° F / 20-90% RH | 5° to 40° C / 20-90% RH | 41° to 104° F / 20-90% RH | 5° to 40° C / 20-90% RH | 41° to 104° F / 20-90% RH | 5° to 40° C / 20-90% RH | 41° to 104° F / 20-90% RH |
| Orientation | Landscape or Portrait | Landscape or Portrait | Landscape or Portrait | Landscape or Portrait |
| Safety regulations | Complies with EN62368-1, FCC Class A, CISPR22/85, CE, EU RoHS | Complies with EN62368-1, FCC Class A, CISPR22/85, CE, EU RoHS | Complies with EN62368-1, FCC Class A, CISPR22/85, CE, EU RoHS | Complies with EN62368-1, FCC Class A, CISPR22/85, CE, EU RoHS |
| Cat6 Cables and Connectors | Cat6a STP (shield twisted pair) cables and connectors are required. | Cat6a STP (shield twisted pair) cables and connectors are required. | Cat6a STP (shield twisted pair) cables and connectors are required. | Cat6a STP (shield twisted pair) cables and connectors are required. |
| Touch Technology | Clarity Matrix MultiTouch (optional) | Clarity Matrix MultiTouch (optional) | Clarity Matrix MultiTouch (optional) | Clarity Matrix MultiTouch (optional) |
| Protection | Planar® ERO-LCD™ (Extended Ruggedness and Optics™) Technology (optional) | Planar® ERO-LCD™ (Extended Ruggedness and Optics™) Technology (optional) | Planar® ERO-LCD™ (Extended Ruggedness and Optics™) Technology (optional) | Planar® ERO-LCD™ (Extended Ruggedness and Optics™) Technology (optional) |
| Fiber Video Extension Module Option | 1 RU rack mount module drives up to 4 displays | 1 RU rack mount module drives up to 4 displays | 1 RU rack mount module drives up to 4 displays | 1 RU rack mount module drives up to 4 displays |
| Fiber Video Extension Module Outputs | 10G Duplex LC SFP+ single mode transceivers supporting distances up to 10km (32.8kft) (Single mode transceivers supporting 2km (6500ft) included) from video wall. Compatible with multi mode transceivers supporting up to 300m (980ft) from the wall. (multi mode transceivers not provided) | 10G Duplex LC SFP+ single mode transceivers supporting distances up to 10km (32.8kft) (Single mode transceivers supporting 2km (6500ft) included) from video wall. Compatible with multi mode transceivers supporting up to 300m (980ft) from the wall. (multi mode transceivers not provided) | 10G Duplex LC SFP+ single mode transceivers supporting distances up to 10km (32.8kft) (Single mode transceivers supporting 2km (6500ft) included) from video wall. Compatible with multi mode transceivers supporting up to 300m (980ft) from the wall. (multi mode transceivers not provided) | 10G Duplex LC SFP+ single mode transceivers supporting distances up to 10km (32.8kft) (Single mode transceivers supporting 2km (6500ft) included) from video wall. Compatible with multi mode transceivers supporting up to 300m (980ft) from the wall. (multi mode transceivers not provided) |
Options
Clarity Matrix G3 Complete
4, 9 or 16 Clarity Matrix G3 LX55M video wall displays in a 2x2, 3x3 or 4x4 array; up to 220" diagonal in total. Pre-packaged to reduce time, complexity and cost of designing and installing a LCD Video Wall
Clarity Matrix MultiTouch
55" FHD display configurations 500 or 700 nits brightness, bezel widths down to 0.88mm & up to 32 touch points
Video Wall Configurator
Design and calculate your Video Wall
With the Video Wall Calculator, users can easily configure custom LED and LCD video walls as well as design and visualize video walls in real environments.
