Série Planar UltraRes P
Écrans LCD 4K de 49" à 98"
Idéaux pour les applications allant de la signalétique digitale dynamique aux salles de réunion collaboratives, les écrans LCD grand format de la Série Planar® UltraRes™ P offrent une résolution 4K et un fonctionnement 24x7. Ils peuvent afficher simultanément jusqu'à quatre sources en mode portrait ou paysage et envoient des notifications par e-mail à distance en cas d'événement inattendu. Des modèles avec écran tactile capacitif multipoint et verre de protection Planar® ERO-LCD™ (Extended Ruggedness and Optics™) sont disponibles.
Les écrans sont "sécurisés" et n'ont pas de lecteur multimédia ni de gestion de contenu intégrés, ce qui les rend idéaux pour les environnements exigeants.
- Disponible en 49", 55", 65", 75", 85" & 98"
- Résolution 4K (3840 x 2160)
- Affichage multi-sources
- Modèles à écran tactile disponibles
- Fonctionnement sécurisé 24x7
- Bouclage du courant pour les sources locales
Points forts

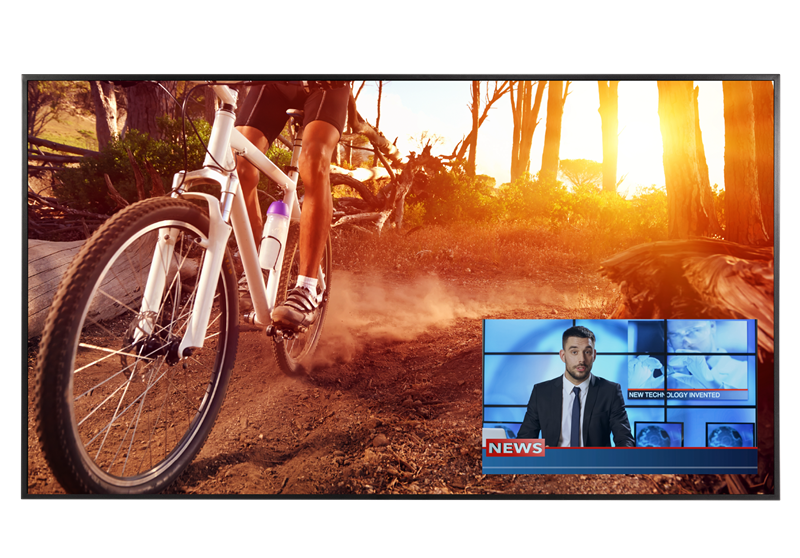

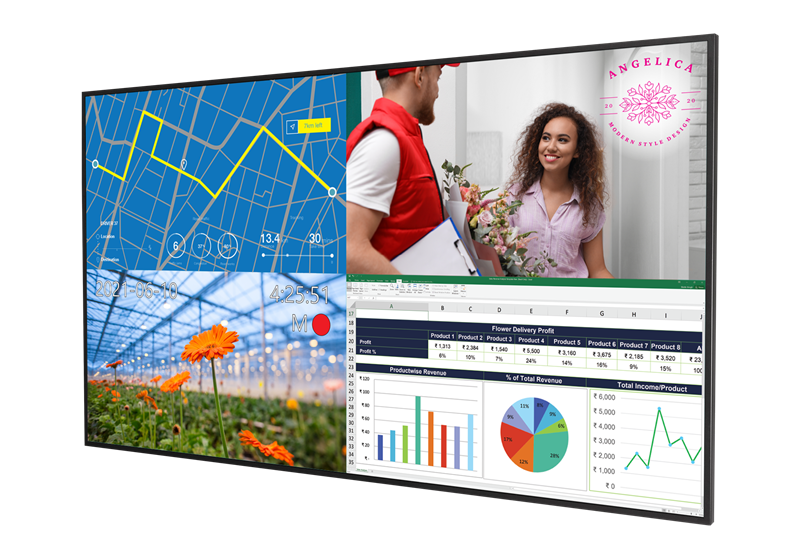

MULTI-SOURCE VIEWING
Le traitement Planar® MediaPlex™ Plus permet un affichage multi-sources avancé, des ajustements d'image, une surveillance à distance et des notifications par e-mail. Le système prend en charge l'image dans l'image, la disposition double, triple ou quadruple et les configurations mémorisables qui peuvent être rappelées par une seule commande.

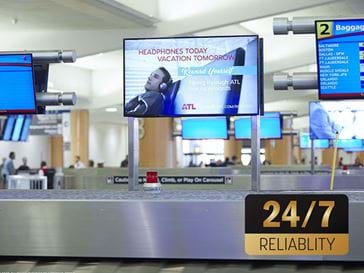

FIABILITÉ PERMANENTE
Les écrans sont conçus pour des environnements critiques où ils sont utilisés pendant de longues périodes ou en continu et doivent offrir des performances exceptionnelles de jour comme de nuit.

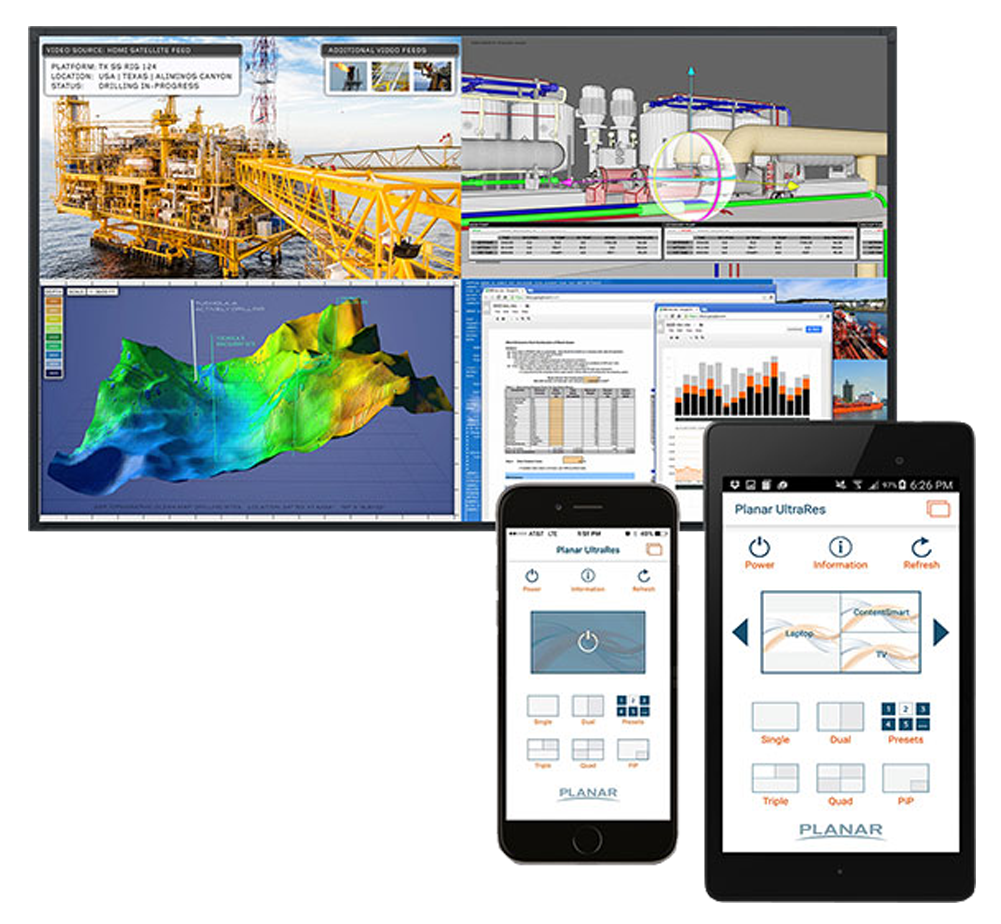

COMMANDE CONFORTABLE
L'application Planar® UltraRes™ permet de gérer facilement à distance l'affichage de plusieurs sources sur les modèles 75'' et 85'' lorsqu'ils sont connectés au même réseau. Disponible pour les appareils iOS® ou Android™.
SELON VOTRE PLAN
Planifiez des événements automatiques tels que l'appel de configurations d'agencement d'image, l'ajustement de la luminosité et la mise en marche et l'arrêt. La planification d'événements vous permet d'économiser de l'énergie et du temps.
RESTER INFORMÉ
Le logiciel de surveillance à distance basé sur un navigateur affiche des informations sur l'écran et permet à l'utilisateur d'effectuer des ajustements sur les zones, la luminosité, les paramètres d'alimentation et plus encore. Configurez des notifications par e-mail pour être informé de certains événements liés aux performances et rester au courant.

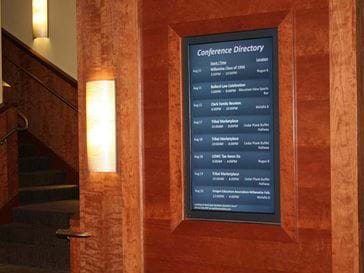

FORMAT VERTICAL OU HORIZONTAL
Les écrans peuvent être montés en mode portrait ou paysage, ce qui permet d'élargir l'éventail des environnements d'utilisation et des applications et d'accroître la créativité dans le développement de contenus.
Add-Ons & Accessoires
ROBUSTESSE ACCRUE & ASPECT
Le verre de protection Planar® ERO-LCD™ (Extended Ruggedness and Optics™) est collé sur la face avant de l'écran à l'aide d'un procédé propriétaire. Il en résulte une surface d'affichage extrêmement résistante, capable de supporter les conditions difficiles des environnements très fréquentés et interactifs. Il offre également un contraste perçu jusqu'à 300 % plus élevé.
ACTIVER L'INTERACTIVITÉ
Augmentez l'interactivité de vos écrans avec un système tactile multipoint. Nos écrans LCD tactiles sont parfaits pour les environnements de travail, de présentation et d'apprentissage qui nécessitent un tableau blanc, une prise de notes et une meilleure expérience globale.
Spécifications des modèles standard
| Product Name | URP49 | URP55 | URP65 | URP75 | URP85 | URP98 |
|---|---|---|---|---|---|---|
| Planar Part Number | 998-2887-00 | 998-2889-00 | 998-2891-00 | 998-2653-01 | 998-2655-01 | 998-3263-00 |
| Display Resolution | Ultra HD (3840 x 2160) | Ultra HD (3840 x 2160) | Ultra HD (3840 x 2160) | Ultra HD (3840 x 2160) | Ultra HD (3840 x 2160) | Ultra HD (3840 x 2160) |
| Screen Size | 49 in. (diagonal) | 55 in. (diagonal) | 65 in. (diagonal) | 75 in. (diagonal) | 85 in. (diagonal) | 98 in. (diagonal) |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
| Display Technology | Edge-lit LED LCD | Edge-lit LED LCD | Edge-lit LED LCD | Direct-lit LED LCD | Direct-lit LED LCD | Direct-lit LED LCD |
| Haze | 28% | 28% | 28% | 25 % | 1% | 28% |
| Surface Treatment | AG | AG | AG | AG | AG | AG |
| Display Active Area | 1073.8mm x 604.0mm (42.3" x 23.8") | 1209.6mm x 680.4mm (47.6" x 26.8") | 1428.5mm x 803.7mm (56.2" x 31.6") | 1649.7mm (64.9”) x 927.9mm (36.5”) | 1872mm (73.7”) x 1053mm (41.5”) | 2159.0mm (85.0") x 1214.6mm (47.8") |
| Viewing Angle (typ) | 178° | 178° | 178° | 178° | 178° | 178° |
| Backlight | LED | LED | LED | LED | LED | LED |
| Backlight life (1/2 brightness) | 30,000 hrs (min) | 30,000 hrs (min) | 30,000 hrs (min) | 50,000 hrs (typ) | 50,000 hrs (typ) | 60,000 hrs (typ) |
| Brightness (typ) | 500 nits | 500 nits | 500 nits | 500 nits | 500 nits | 500 nits |
| Response Time (typ) | 8 ms | 8 ms | 8 ms | 8 ms | 9.5 ms | 8 ms |
| Frame Rate | 60Hz | 60Hz | 60Hz | 60Hz | 60Hz | 60Hz |
| Contrast Ratio (typ) | 1100:1 | 1100:1 | 1100:1 | 1200:1 | 5000:1 | 1200:1 |
| Pixel Pitch | 0.2796 mm | 0.315 mm | 0.372 mm | 0.4296 mm | 0.4875 mm | 0.5622 mm |
| Color Gamut | 72% NTSC | 72% NTSC | 72% NTSC | 72% NTSC | 72% NTSC | 72% NTSC |
| Display Color | >1 billion colors. Full 10 bit data path | >1 billion colors. Full 10 bit data path | >1 billion colors. Full 10 bit data path | >1 billion colors. Full 10 bit data path | >1 billion colors. Full 10 bit data path | >1 billion colors. Full 10 bit data path |
| External Connections | DisplayPort 1.2 x 2, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2, VGA x 1 | DisplayPort 1.2 x 2, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2, VGA x 1 | DisplayPort 1.2 x 2, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2, VGA x 1 | DisplayPort 1.2 in x 1, DisplayPort out, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2 | DisplayPort 1.2 in x 1, DisplayPort out, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2 | DisplayPort 1.2 in x 1, DisplayPort out, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2 |
| Modes | 3840x2160 @ 24/25/30/50/60Hz; 1080p @ 24/25/30/50/60Hz; 480p, 576p, 720p @ 50/60 Hz | 3840x2160 @ 24/25/30/50/60Hz; 1080p @ 24/25/30/50/60Hz; 480p, 576p, 720p @ 50/60 Hz | 3840x2160 @ 24/25/30/50/60Hz; 1080p @ 24/25/30/50/60Hz; 480p, 576p, 720p @ 50/60 Hz | 1x 3840x2160 @ 24/25/30/60Hz, 4x 1920x1080 @ 24/25/30/50/60Hz; 2x 1920x2160 @ 60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz |
1x 3840x2160 @ 24/25/30/60Hz, 4x 1920x1080 @ 24/25/30/50/60Hz; 2x 1920x2160 @ 60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz | 1x 3840x2160 @ 24/25/30/60Hz, 4x 1920x1080 @ 24/25/30/50/60Hz; 2x 1920x2160 @ 60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz |
| Display Control | IR, RS-232, LAN, HDMI-CEC, Keypad | IR, RS-232, LAN, HDMI-CEC, Keypad | IR, RS-232, LAN, HDMI-CEC, Keypad | IR, RS-232, LAN, HDMI-CEC, Keypad, Web Browser Interface | IR, RS-232, LAN, HDMI-CEC, Keypad, Web Browser Interface | IR, RS-232, LAN, HDMI-CEC, Keypad, Web Browser Interface |
| Cabinet Dimensions (W x H x D) | 1099.4mm x 632.2mm x 65.8mm (43.3" x 24.9" x 2.6") | 1235.6mm x 709.0mm x 65.8mm (48.6" x 27.9" x 2.6") | 1454.4mm x 832.2mm x 67.3mm (57.3" x 32.8" x 2.6") | 1684.0mm x 962.0 x 91.2mm (66.3" x 37.9" x 3.6") | 1902.0mm x 1083.0mm x 89.4mm (74.9" x 42.6" x 3.5") | 2192.0mm x 1247.0mm x 89.6mm (86.3" x 49.1" x 3.5") |
| Cabinet Dimensions with Handles (W x H x D) | 1099.4mm x 632.2mm x 74.8mm (43.3" x 24.9" x 2.9") | 1235.6mm x 709.0mm x 74.8mm (48.6" x 27.9" x 2.9") | 1454.4mm x 832.2mm x 74.8mm (57.3" x 32.8" x 2.9") | 1684.0mm x 962.0 x 91.2mm (66.3" x 37.9" x 3.6") | 1902.0mm x 1083.0mm x 92.6mm (74.9" x 42.6" x 3.7") | 2192.0mm x 1247.0mm x 97.6mm (86.3" x 49.1" x 3.8") |
| Orientation | Landscape/Portrait | Landscape/Portrait | Landscape/Portrait | Landscape/Portrait | Landscape/Portrait | Landscape/Portrait |
| Bezel Width | 10.5mm (0.4") left and right, 10.0mm (0.4") top, 13.6mm (0.5") bottom | 10.5mm (0.4") left and right, 10.0mm (0.4") top, 13.6mm (0.5") bottom | 10.5mm (0.4") left and right, 10.0mm (0.4") top, 13.6mm (0.5") bottom | 14.9mm (0.6") | 13mm (0.5") | 15.2mm (0.6”) |
| Display Edge to Active Area | 10.5mm (0.4") left and right, 10.0mm (0.4") top, 13.6mm (0.5") bottom | 10.5mm (0.4") left and right, 10.0mm (0.4") top, 13.6mm (0.5") bottom | 10.5mm (0.4") left and right, 10.0mm (0.4") top, 13.6mm (0.5") bottom | 16.9mm (0.7") | 15mm (0.6") | 16.5mm (0.6”) Right, Left; 16.2mm (0.6”) Top, Bottom |
| Weight | 20.9 kg (46.1 lbs) | 25.6 kg (56.4 lbs) | 38.0 kg (83.8 lbs) | 42 kg (92 lbs) | 58 kg (127 lbs) | 94.8 kg (209 lbs) |
| Audio Input | PC Line In | PC Line In | PC Line In | PC Line In | PC Line In | PC Line In |
| Audio Output | PC Line Out, S/PDIF | PC Line Out, S/PDIF | PC Line Out, S/PDIF | PC Line Out, S/PDIF | PC Line Out, S/PDIF | PC Line Out, S/PDIF |
| Speakers | 10W x 2 built-in | 10W x 2 built-in | 10W x 2 built-in | 10W x 2 built-in | 10W x 2 built-in | 10W x 2 built-in |
| Enclosure | Metal, Industrial | Metal, Industrial | Metal, Industrial | Metal | Metal | Metal |
| Mounting | VESA: 300mm x 300mm | VESA: 300mm x 300mm | VESA: 400mm x 400mm | VESA: 600 x 400mm. External device mounting: 100 x 100mm | VESA: 600 x 400mm. External device mounting: 100 x 100mm | VESA: 600 x 400mm. External device mounting: 100 x 100mm |
| Fanless | Yes | Yes | Yes | Yes | Yes | Yes |
| Line Voltage | 100-240V; 50/60Hz | 100-240V; 50/60Hz | 100-240V; 50/60Hz | 100-240V; 50/60Hz | 100-240V; 50/60Hz | 100-240V; 50/60Hz |
| Power Consumption (typ) | 79W (standby: <0.5W) | 85W (standby: <0.5W) | 100W (standby: <0.5W) | 195W (standby: <0.5W) | 175W (standby: <0.5W) | 273W (standby: <0.5W) |
| AC Output Current (max) | 3A | 3A | 3A | 3A | 3A | 3A |
| Operating Temperature | 0° to +40°C (32° to 104°F) up to 3000m | 0° to +40°C (32° to 104°F) up to 3000m | 0° to +40°C (32° to 104°F) up to 3000m | 0° to +40°C (32° to 104°F) at up to 3000m | 0° to +40°C (32° to 104°F) at up to 3000m | 0° to +40°C (32° to 104°F) at up to 3000m |
| Humidity | 20 - 85% RH (non-condensing) | 20 - 85% RH (non-condensing) | 20 - 85% RH (non-condensing) | 20 - 85% RH (non-condensing) | 20 - 85% RH (non-condensing) | 20 - 85% RH (non-condensing) |
| Options / Features | On/Off scheduling, presets, convenient mounting points for third-party accessories | On/Off scheduling, presets, convenient mounting points for third-party accessories | On/Off scheduling, presets, convenient mounting points for third-party accessories | MediaPlex Plus Processing, Scheduling, Presets, convenient mounting points for third-party accessories | MediaPlex Plus Processing, Scheduling, Presets, convenient mounting points for third-party accessories | MediaPlex Plus Processing, Scheduling, Presets, convenient mounting points for third-party accessories |
| Auto Brightness Control | Ambient light sensor | Ambient light sensor | Ambient light sensor | N/A | N/A | N/A |
| Multi-Source Views | PiP, Dual, Quad | PiP, Dual, Quad | PiP, Dual, Quad | PiP, Dual, Triple, Quad | PiP, Dual, Triple, Quad | PiP, Dual, Triple, Quad |
| Approvals | FCC Class A, CE, cTUVus, RoHS | FCC Class A, CE, cTUVus, RoHS | FCC Class A, CE, cTUVus, RoHS | FCC Class A, CE, cTUVus, RoHS | FCC Class A, CE, cTUVus, RoHS | FCC Class A, CE, cTUVus, RoHS |
| ENERGY STAR Certified | Yes | Yes | Yes | Yes | Yes | No |
| TAA Compliance | Yes | Yes | Yes | Yes | Yes | Yes |
| Security | No WiFi, no Android O/S, signed and encrypted firmware, tamper-resistant stickers, ability to disable communication interfaces, Secure Shell (SSH) protocol | No WiFi, no Android O/S, signed and encrypted firmware, tamper-resistant stickers, ability to disable communication interfaces, Secure Shell (SSH) protocol | No WiFi, no Android O/S, signed and encrypted firmware, tamper-resistant stickers, ability to disable communication interfaces, Secure Shell (SSH) protocol | No WiFi, no Android O/S, signed and encrypted firmware, tamper-resistant stickers | No WiFi, no Android O/S, signed and encrypted firmware, tamper-resistant stickers | No WiFi, no Android O/S, signed and encrypted firmware |
| Warranty | 3 years Advance Exchange | 3 years Advance Exchange | 3 years Advance Exchange | 3 years Advance Exchange | 3 years Advance Exchange | 3 years Advance Exchange |
| Recommended Usage | Up to 24x7 | Up to 24x7 | Up to 24x7 | Up to 24x7 operation | Up to 24x7 operation | Up to 24x7 operation |
| In the Box | URP49 display, power cord, HDMI cable, IR cable, remote control, cable clips and Quick Start Guide | URP55 display, power cord, HDMI cable, IR cable, remote control, cable clips and Quick Start Guide | URP65 display, power cord, HDMI cable, IR cable, remote control, cable clips and Quick Start Guide | URP75 display, US power cord - 1.8m, HDMI cable 2m, IR sensor, remote control, QuickStart Guide | URP85 display, US power cord - 1.8m, HDMI cable 2m, IR sensor, remote control, QuickStart Guide | URP98 display, US power cord - 1.8m, HDMI cable 2m, IR sensor, remote control, QuickStart Guide |
| UPC | 8 10689 00991 7 | 8 10689 00995 5 | 8 10069 81079 9 | 8 10069 81049 2 | 8 10069 81103 1 | |
Spécifications des modèles tactiles
| Product Name | URP49-T | URP55-T | URP65-T | URP75-ERO-T | URP85-ERO-T | URP98-ERO-T |
|---|---|---|---|---|---|---|
| Planar Part Number | 998-2888-00 | 998-2890-00 | 998-2892-00 | 998-2654-01 | 998-2656-01 | 998-3264-00 |
| Protective Glass | 3mm with AG+AF coating | 3mm with AG+AF coating | 3mm with AG+AF coating | ERO optically-bonded glass technology featuring Corning Gorilla Glass, 2mm AG | ERO optically-bonded glass technology featuring Corning Gorilla Glass, 2mm AG | ERO optically-bonded glass technology, Soda-lime Glass, 3mm AR |
| Touch Technology | Projected Capacitive: 50 points | Projected Capacitive: 50 points | Projected Capacitive: 50 points | IR touch: 20 points | IR touch: 20 points | IR touch: 20 points |
| OS Compatibility | Windows 10, 11, Mac OSX and Linux | Windows 10, 11, Mac OSX and Linux | Windows 10, 11, Mac OSX and Linux | Windows 10, 11, Mac OSX and Linux | Windows 10, 11, Mac OSX and Linux | Windows 10, 11, Mac OSX and Linux |
| Display Resolution | Ultra HD (3840 x 2160) | Ultra HD (3840 x 2160) | Ultra HD (3840 x 2160) | Ultra HD (3840 x 2160) | Ultra HD (3840 x 2160) | Ultra HD (3840 x 2160) |
| Screen Size | 49 in. (diagonal) | 55 in. (diagonal) | 65 in. (diagonal) | 75 in. (diagonal) | 85 in. (diagonal) | 98 in. (diagonal) |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
| Display Technology | Edge-lit LED LCD | Edge-lit LED LCD | Edge-lit LED LCD | Direct-lit LED LCD | Direct-lit LED LCD | Direct-lit LED LCD |
| Display Active Area | 1073.8mm x 604.0mm (42.3" x 23.8") | 1209.6mm x 680.4mm (47.6" x 26.8") | 1428.5mm x 803.7mm (56.2" x 31.6") | 1649.7mm (64.9”) x 927.9mm (36.5”) | 1872mm (73.7”) x 1053mm (41.5”) | TBD |
| Viewing Angle (typ) | 178° | 178° | 178° | 178° | 178° | 178° |
| Backlight | LED | LED | LED | LED | LED | LED |
| Backlight life (1/2 brightness) | 30,000 hrs (min) | 30,000 hrs (min) | 30,000 hrs (min) | 50,000 hrs (typ) | 50,000 hrs (typ) | 60,000 hrs (typ) |
| Brightness (w/protective glass) | 450 nits | 450 nits | 450 nits | 450 nits | 450 nits | 450 nits |
| Response Time (typ) | 8 ms | 8 ms | 8 ms | 8 ms | 9.5 ms | 8 ms |
| Frame Rate | 60Hz | 60Hz | 60Hz | 60Hz | 60Hz | 60Hz |
| Contrast Ratio (typ) | 1100:1 | 1100:1 | 1100:1 | 1200:1 | 5000:1 | 5000:1 |
| Pixel Pitch | 0.2796 mm | 0.315 mm | 0.372 mm | 0.4296 mm | 0.4875 mm | 0.5622 mm |
| Color Gamut | 72% NTSC | 72% NTSC | 72% NTSC | 72% NTSC | 72% NTSC | 72% NTSC |
| Display Color | >1 billion colors. Full 10 bit data path | >1 billion colors. Full 10 bit data path | >1 billion colors. Full 10 bit data path | >1 billion colors. Full 10 bit data path | >1 billion colors. Full 10 bit data path | >1 billion colors. Full 10 bit data path |
| External Connections | DisplayPort 1.2 x 2, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2, VGA x 1 | DisplayPort 1.2 x 2, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2, VGA x 1 | DisplayPort 1.2 x 2, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2, VGA x 1 | DisplayPort 1.2 in x 1, DisplayPort out, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2, USB-B (for touch controller) | DisplayPort 1.2 in x 1, DisplayPort out, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2, USB-B (for touch controller) | DisplayPort 1.2 in x 1, DisplayPort out, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2, USB-B (for touch controller) |
| Modes | 3840x2160 @ 24/25/30/50/60Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz; 480p, 576p, 720p @ 50/60 Hz |
3840x2160 @ 24/25/30/50/60Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz; 480p, 576p, 720p @ 50/60 Hz |
3840x2160 @ 24/25/30/50/60Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz; 480p, 576p, 720p @ 50/60 Hz |
1x 3840x2160 @ 24/25/30/60Hz, 4x 1920x1080 @ 24/25/30/50/60Hz; 2x 1920x2160 @ 60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz |
1x 3840x2160 @ 24/25/30/60Hz, 4x 1920x1080 @ 24/25/30/50/60Hz; 2x 1920x2160 @ 60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz |
1x 3840x2160 @ 24/25/30/60Hz, 4x 1920x1080 @ 24/25/30/50/60Hz; 2x 1920x2160 @ 60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz |
| Display Control | IR, RS-232, LAN, HDMI-CEC, Keypad | IR, RS-232, LAN, HDMI-CEC, Keypad | IR, RS-232, LAN, HDMI-CEC, Keypad | IR, RS-232, LAN, HDMI-CEC, Keypad, Web Browser Interface | IR, RS-232, LAN, HDMI-CEC, Keypad, Web Browser Interface | IR, RS-232, LAN, HDMI-CEC, Keypad, Web Browser Interface |
| Cabinet Dimensions (W x H x D) | 1127.2mm x 657.4mm x 69.8mm (44.4" x 25.9" x 2.7") | 1263.8mm x 734.2mm x 68.8mm (49.8" x 28.9" x 2.7") | 1482.7mm x 857.5mm x 78.8mm (58.4" x 33.8" x 3.1") | 1717.0mm x 995.0mm x 103.7mm (67.6" x 39.2" x 4.1") | 1936.0mm x 1117.0mm x 104.5mm (76.2" x 44.0" x 4.1") | 2221.0mm x 1276.0mm x 98.9mm (87.5" x 50.3" x 3.9") |
| Cabinet Dimensions with Handles (W x H x D) | 1127.2mm x 657.4mm x 69.8mm (44.4" x 25.9" x 2.7") | 1263.8mm x 734.2mm x 68.8mm (49.8" x 28.9" x 2.7") | 1482.7mm x 857.5mm x 78.8mm (58.4" x 33.8" x 3.1") | 1717.0mm x 995.0mm x 103.7mm (67.6" x 39.2" x 4.1") | 1936.0mm x 1117.0mm x 104.5mm (76.2" x 44.0" x 4.1") | 2221.0mm x 1276.0mm x 106.9mm (87.5" x 50.3" x 4.2") |
| Orientation | Landscape/Portrait | Landscape/Portrait | Landscape/Portrait | Landscape/Portrait | Landscape/Portrait | Landscape/Portrait |
| Bezel Width | 1.5mm (0.1") | 1.5mm (0.1") | 1.5mm (0.1") | 15.1mm (0.6") | 15.1mm (0.6") | 15.2mm (0.6") |
| Display Edge to Active Area | 26.7mm (1.1") | 27.0mm (1.1") left and right, 27.1mm (1.1") top and bottom | 27.0mm (1.1") left and right, 27.1mm (1.1") top and bottom | 33.7mm (1.3") | 31.8mm (1.3") | 31.3mm (1.2”) Right, Left; 31.0mm (1.2”) Top, Bottom |
| Weight | 28.6 kg (63.1 lbs) | 34.7 kg (76.5 lbs) | 50.0 kg (110.2 lbs) | 63 kg (138 lbs) | 82 kg (181 lbs) | 126.1 kg (278 lbs) |
| Audio Input | PC Line In | PC Line In | PC Line In | PC Line In | PC Line In | PC Line In |
| Audio Output | PC Line Out, S/PDIF | PC Line Out, S/PDIF | PC Line Out, S/PDIF | PC Line Out, S/PDIF | PC Line Out, S/PDIF | PC Line Out, S/PDIF |
| Speakers | 10W x 2 built-in | 10W x 2 built-in | 10W x 2 built-in | 10W x 2 built-in | 10W x 2 built-in | 10W x 2 built-in |
| Enclosure | Metal, Industrial | Metal, Industrial | Metal, Industrial | Metal | Metal | Metal |
| Mounting | VESA: 300mm x 300mm | VESA: 300mm x 300mm | VESA: 400mm x 400mm | VESA: 600 x 400mm. External device mounting: 100 x 100mm | VESA: 600 x 400mm. External device mounting: 100 x 100mm | VESA: 600 x 400mm. External device mounting: 100 x 100mm |
| Fanless | Yes | Yes | Yes | Yes | Yes | Yes |
| Line Voltage | 100-240V; 50/60Hz | 100-240V; 50/60Hz | 100-240V; 50/60Hz | 100-240V; 50/60Hz | 100-240V; 50/60Hz | 100-240V; 50/60Hz |
| Power Consumption (typ) | 79W (standby: <0.5W) | 85W (standby: <0.5W) | 100W (standby: <0.5W) | 195W (standby: <0.5W) | 175W (standby: <0.5W) | 273W (standby: <0.5W) |
| AC Output Current (max) | 3A | 3A | 3A | 3A | 3A | 3A |
| Operating Temperature | 0° to +40°C (32° to 104°F) up to 3000m | 0° to +40°C (32° to 104°F) up to 3000m | 0° to +40°C (32° to 104°F) up to 3000m | 0° to +40°C (32° to 104°F) at up to 3000m | 0° to +40°C (32° to 104°F) at up to 3000m | 0° to +40°C (32° to 104°F) at up to 3000m |
| Humidity | 20 - 85% RH (non-condensing) | 20 - 85% RH (non-condensing) | 20 - 85% RH (non-condensing) | 20 - 85% RH (non-condensing) | 20 - 85% RH (non-condensing) | 20 - 85% RH (non-condensing) |
| Options / Features | On/Off scheduling, presets, convenient mounting points for third-party accessories | On/Off scheduling, presets, convenient mounting points for third-party accessories | On/Off scheduling, presets, convenient mounting points for third-party accessories | MediaPlex Plus Processing, Scheduling, Presets, convenient mounting points for third-party accessories | MediaPlex Plus Processing, Scheduling, Presets, convenient mounting points for third-party accessories | MediaPlex Plus Processing, Scheduling, Presets, convenient mounting points for third-party accessories |
| Auto Brightness Control | Ambient light sensor | Ambient light sensor | Ambient light sensor | N/A | N/A | N/A |
| Multi-Source Views | PiP, Dual, Quad | PiP, Dual, Quad | PiP, Dual, Quad | PiP, Dual, Triple, Quad | PiP, Dual, Triple, Quad | PiP, Dual, Triple, Quad |
| Approvals | FCC Class A, CE, cTUVus, RoHS | FCC Class A, CE, cTUVus, RoHS | FCC Class A, CE, cTUVus, RoHS | FCC Class A, CE, cTUVus, RoHS | FCC Class A, CE, cTUVus, RoHS | FCC Class A, CE, cTUVus, RoHS |
| ENERGY STAR Certified | Yes | Yes | Yes | Yes | Yes | No |
| TAA Compliance | Yes | Yes | Yes | Yes | Yes | Yes |
| Security | No WiFi, no Android O/S, signed and encrypted firmware, tamper-resistant stickers, ability to disable communication interfaces, Secure Shell (SSH) protocol | No WiFi, no Android O/S, signed and encrypted firmware, tamper-resistant stickers, ability to disable communication interfaces, Secure Shell (SSH) protocol | No WiFi, no Android O/S, signed and encrypted firmware, tamper-resistant stickers, ability to disable communication interfaces, Secure Shell (SSH) protocol | No WiFi, no Android O/S, signed and encrypted firmware, tamper-resistant stickers | No WiFi, no Android O/S, signed and encrypted firmware, tamper-resistant stickers | No WiFi, no Android O/S, signed and encrypted firmware |
| Warranty | 3 years Advance Exchange | 3 years Advance Exchange | 3 years Advance Exchange | 3 years Advance Exchange | 3 years Advance Exchange | 3 years Advance Exchange |
| Recommended Usage | Up to 24x7 | Up to 24x7 | Up to 24x7 | Up to 24x7 operation | Up to 24x7 operation | Up to 24x7 operation |
| In the Box | URP49-T display, power cord, HDMI cable, IR cable, USB A to B cable, remote control, cable clips, passive stylus, Quick Start Guide | URP55-T display, power cord, HDMI cable, IR cable, USB A to B cable, remote control, cable clips, passive stylus, Quick Start Guide | URP65-T display, power cord, HDMI cable, IR cable, USB A to B cable, remote control, cable clips, passive stylus, Quick Start Guide | URP75-ERO-T display, US power cord - 1.8m, HDMI cable 2m, USB (A to B) cable, IR sensor, remote control, QuickStart Guide | URP85-ERO-T display, US power cord - 1.8m, HDMI cable 2m, USB (A to B) cable, IR sensor, remote control, QuickStart Guide | URP98-ERO-T display, US power cord - 1.8m, HDMI cable 2m, USB (A to B) cable, IR sensor, remote control, QuickStart Guide |
| UPC | 8 10689 00992 4 | 8 10689 00994 8 | 8 10689 00996 2 | 8 10069 81080 5 | 8 10069 81050 8 | 8 10069 81104 8 |
